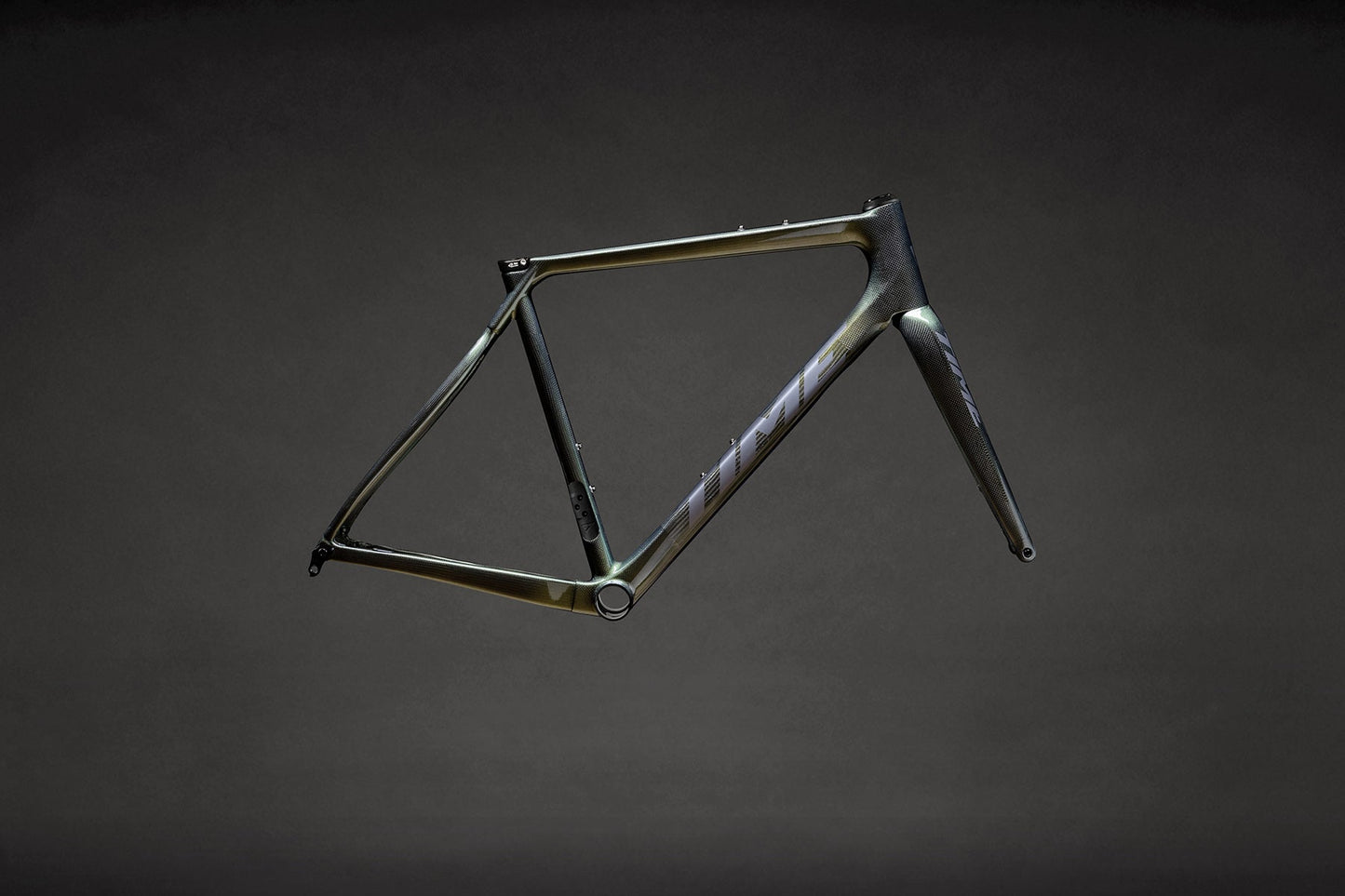

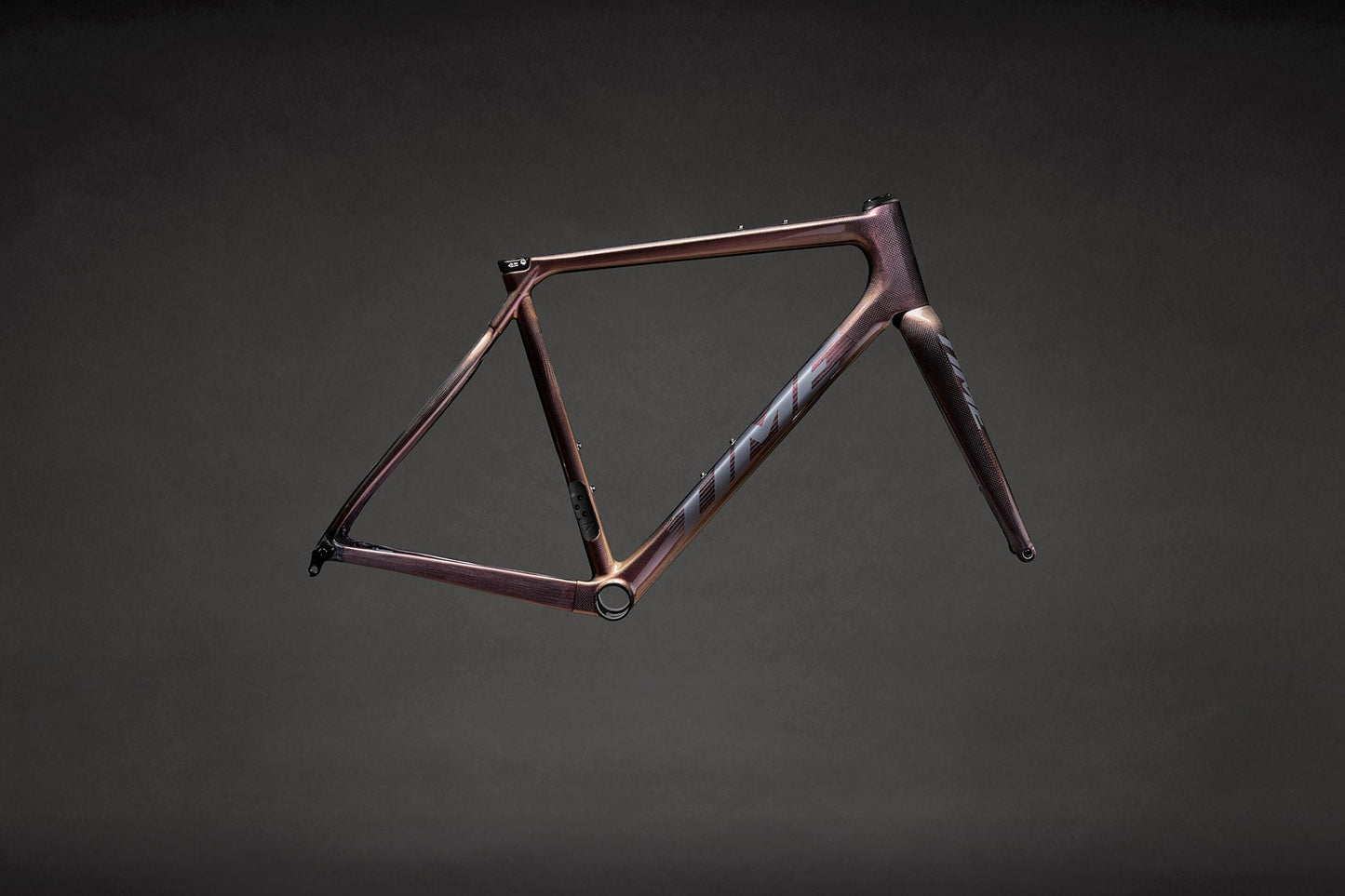

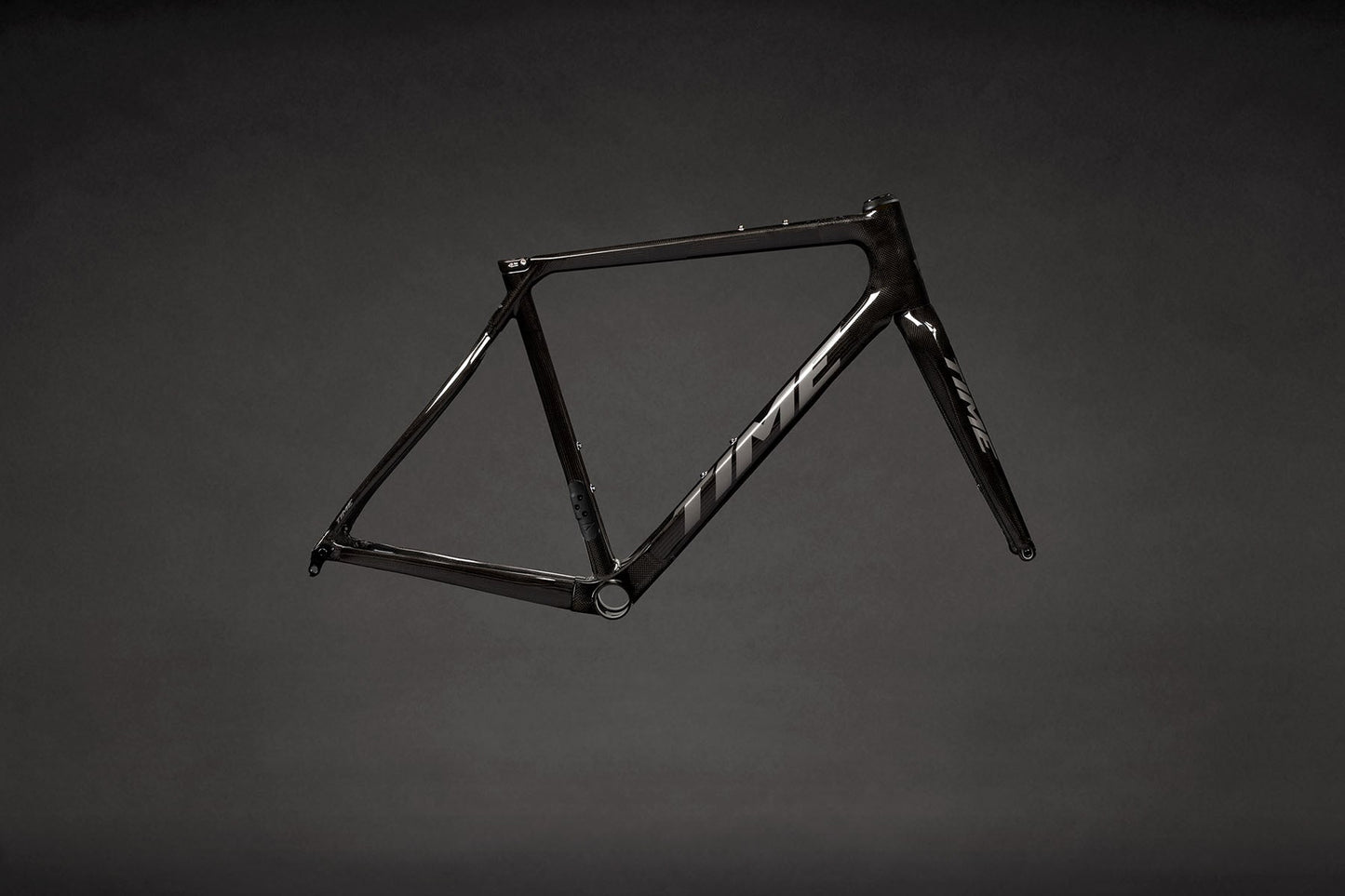

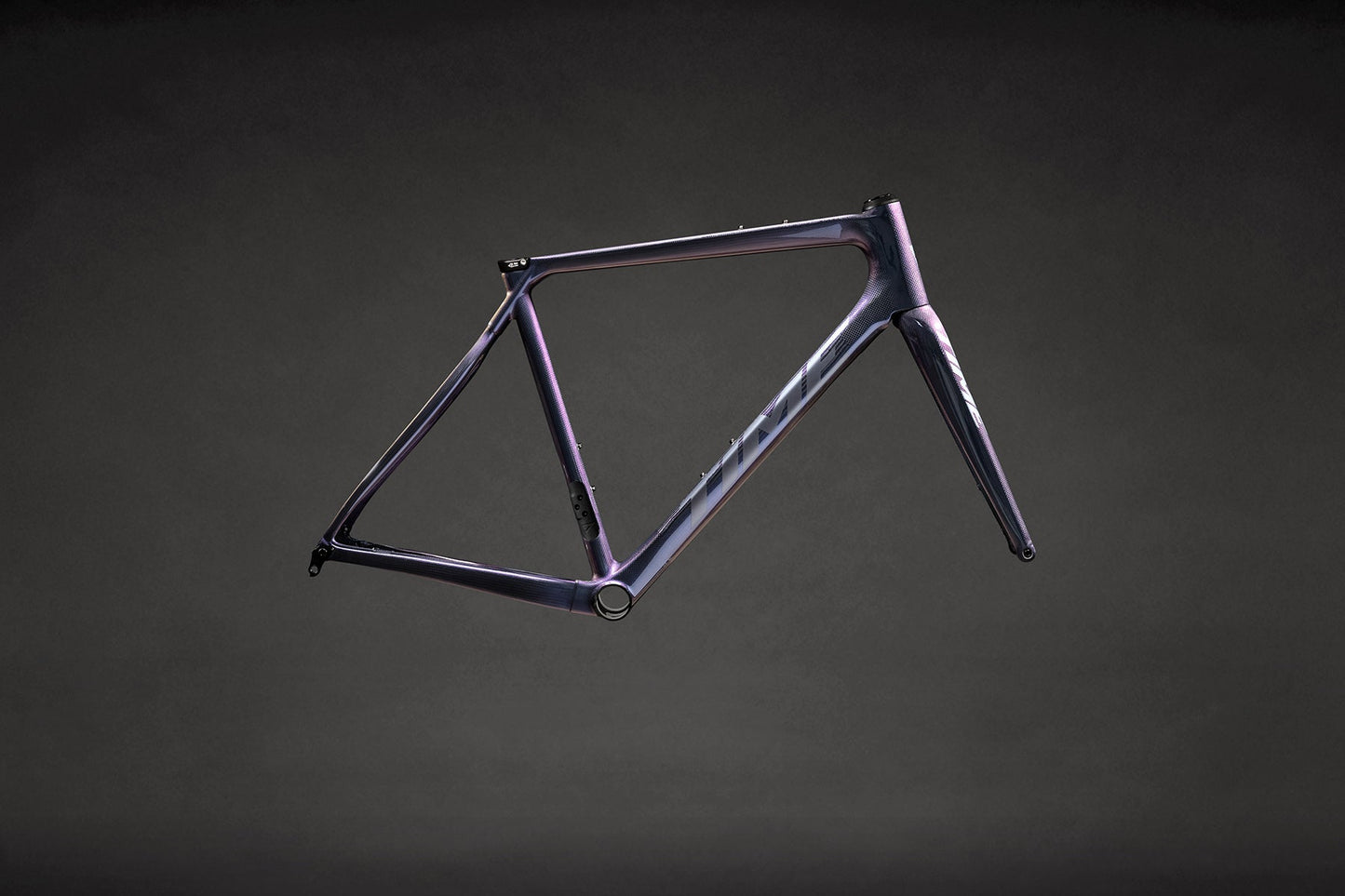

Meet Alpe d’Huez X – the zenith of agility and expanded possibilities. Engineered for wider road tyres, it delivers a smooth ride over rough asphalt and quick acceleration for challenging group rides. Versatile and comfortable, Alpe d’Huez X excels on any route over any road, ensuring you’re ready to do it again tomorrow.

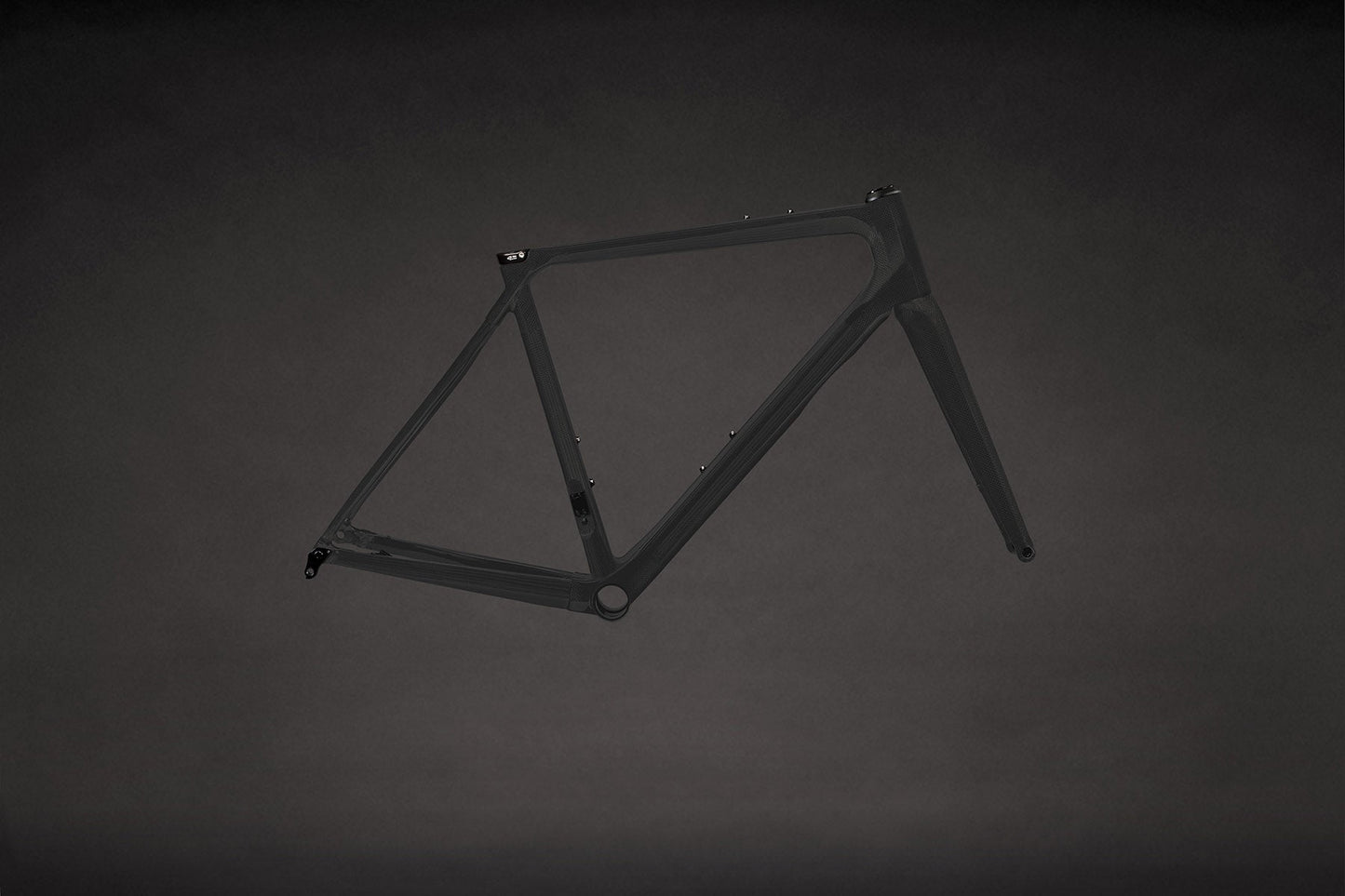

Ready to Paint
Time framesets can be purchased Ready to Paintin a prepped and sanded condition and with all hardware. Choose your own paint shop to create the TIME of your dreams.
What's Included
• DEDA S DCR Headset for Semi & Fully-Integrated Cockpits
• Front and Rear Thru Axles • Alloy Bottle Bolts • Integrated Seatpost Clamp • Derailleur Hangers • Single Cover and Drivetrain Conversion Kit
Bio-Based DYNEEMA® Fiber is Lighter, Stronger and Smarter
Dyneema® fiber is 15x stronger than steel at the same weight and is so light that it floats on water. The promise of integrating Dyneema® in carbon structures has been making headlines for years now, but to date very few manufacturers have been able to incorporate the material. TIME is different–we aren't reliant on materials availability from large carbon prepreg manufacturers. By weaving our own braided carbon structures (BCS) we have been able to test strands of sustainable Bio-Based Dyneema® fibres since they first became available from DSM. And unlike the high temperature ovens used to cure standard prepreg frames, the lower resin temperature of the RTM injection process is well within the safe temperature range for Dyneema®
Is It Your Time?
ADHX is perfect for riders who want a top-performing “fast gravel” machine. Weight, stiffness, comfort and handling are cornerstones – as important as the knowledge that ADHX is technologically unique. Racers, All Road explorers and everyday riders seeking an experience off the tarmac will find ADHX checks the boxes.

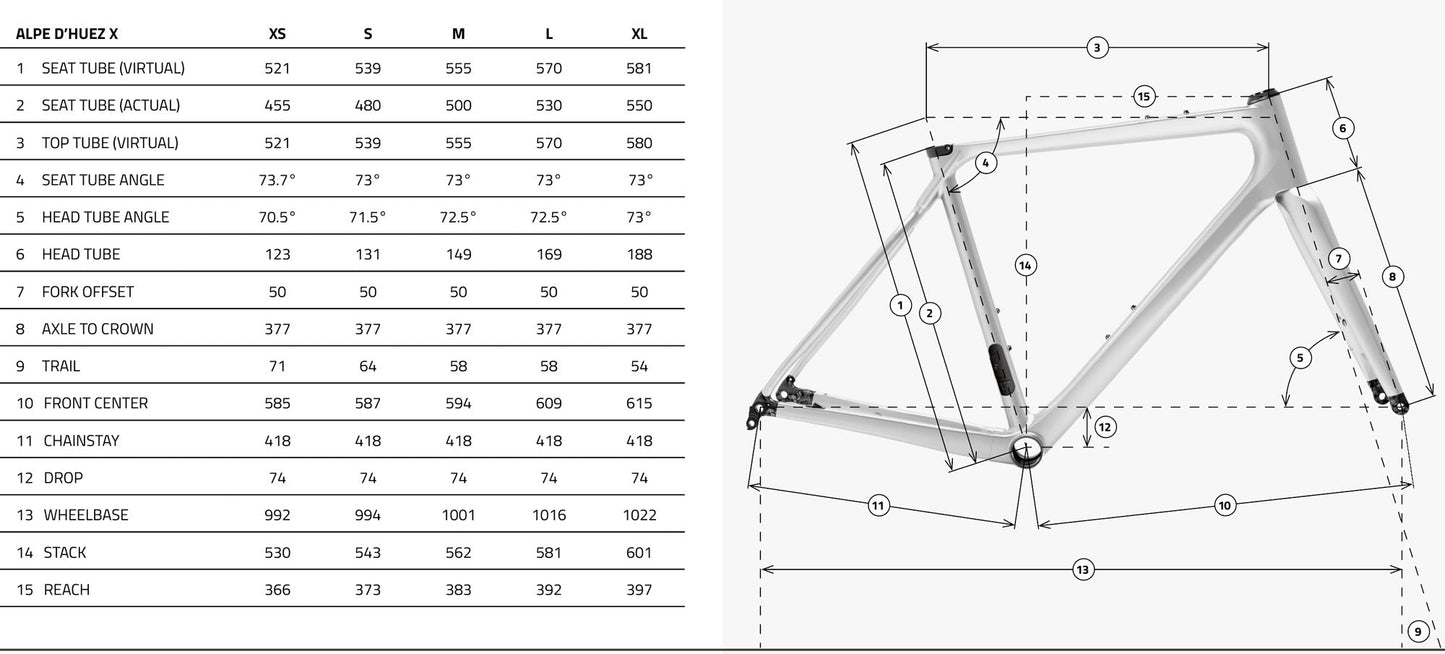

ALPE D'HUEZ X FRAME SPECIFICATIONS
FRAME MATERIAL BCS Carbon Fiber - Vectran® and Dyneema® Enhanced
THRU AXLES 12x120x1.5mm Pitch F, 12x159x1.5 Pitch R
SIZES XS, SM, MD, LG, XL
SEATPOST DIAMETER ø27.2mm

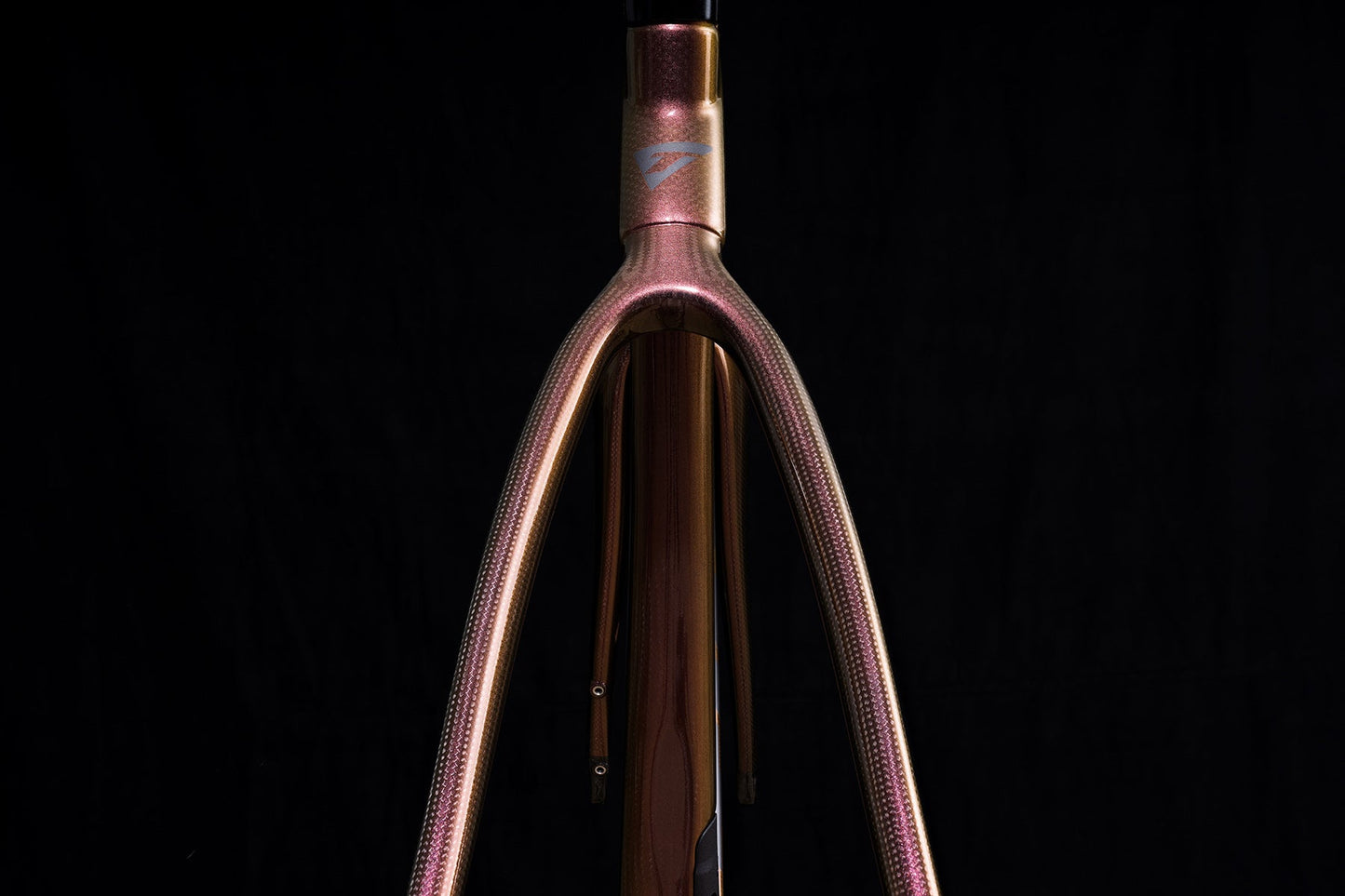

FORK STEERER TUBE Tapered 1-1/8" to 1-1/2"

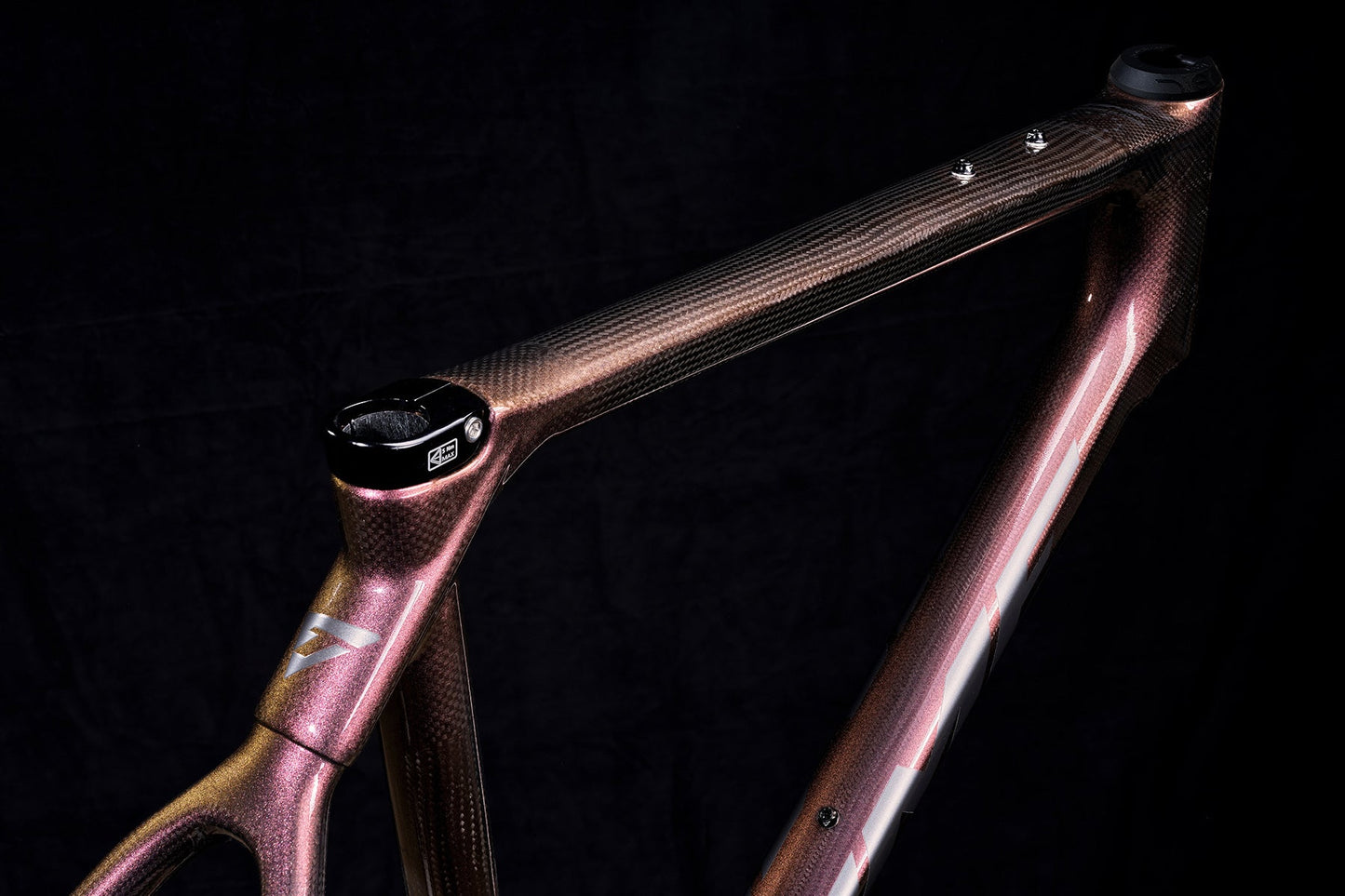

SEATPOST CLAMP Proprietary TIME Alloy
HEADSET BEARINGS Top and Bottom 1-1/2" (with internal routing compression ring)
SHIFTING Compatible with Electronic and Mechanical Shifting Systems
WHEEL SIZE 700c
FRONT DERAILLEUR 1X and 2X Compatible with Integrated Single Cover and Drivetrain Conversion Kit
MAXIMUM TIRE WIDTH
700 x 28-38C Road Tires, Optimised for 32-35C
(not all tire/rim combinations fit with adequate clearance - check for appropriate fit)
