Kinesis - Frameset - GTD v2

Whether it's a leisurely ride around your neighbourhood or an epic journey across several continents, we've got you covered – the Kinesis GTD V2 is here.

Our premier titanium road bike frameset has returned, enhanced with a range of refinements for an even more memorable ride. Whether you're participating in endurance races, century rides, or commuting in style, the GTD frameset provides pure riding pleasure on every journey.

Rider Fit Geometry ensures redistributed sizing based on stack and reach measurements, with semi-sloping frames on the smallest sizes. This reduces the stand-over height while bringing comfort in line with our larger models.

The GTD is designed for all-weather riding because we believe that the exceptional ride of our custom titanium tubeset should not be limited to summer Sundays. It’s perfectly built for perfect rides.

NEW Rider Fit Geometry — Redistributed sizing based around Stack and Reach measurements, with semi-sloping frame on the smallest frames. This reduces the stand-over height but also brings comfort in line with our larger models.
NEW Carbon Fork — Increased tyre, mudguard clearance and mounting point for a dynamo lamp.

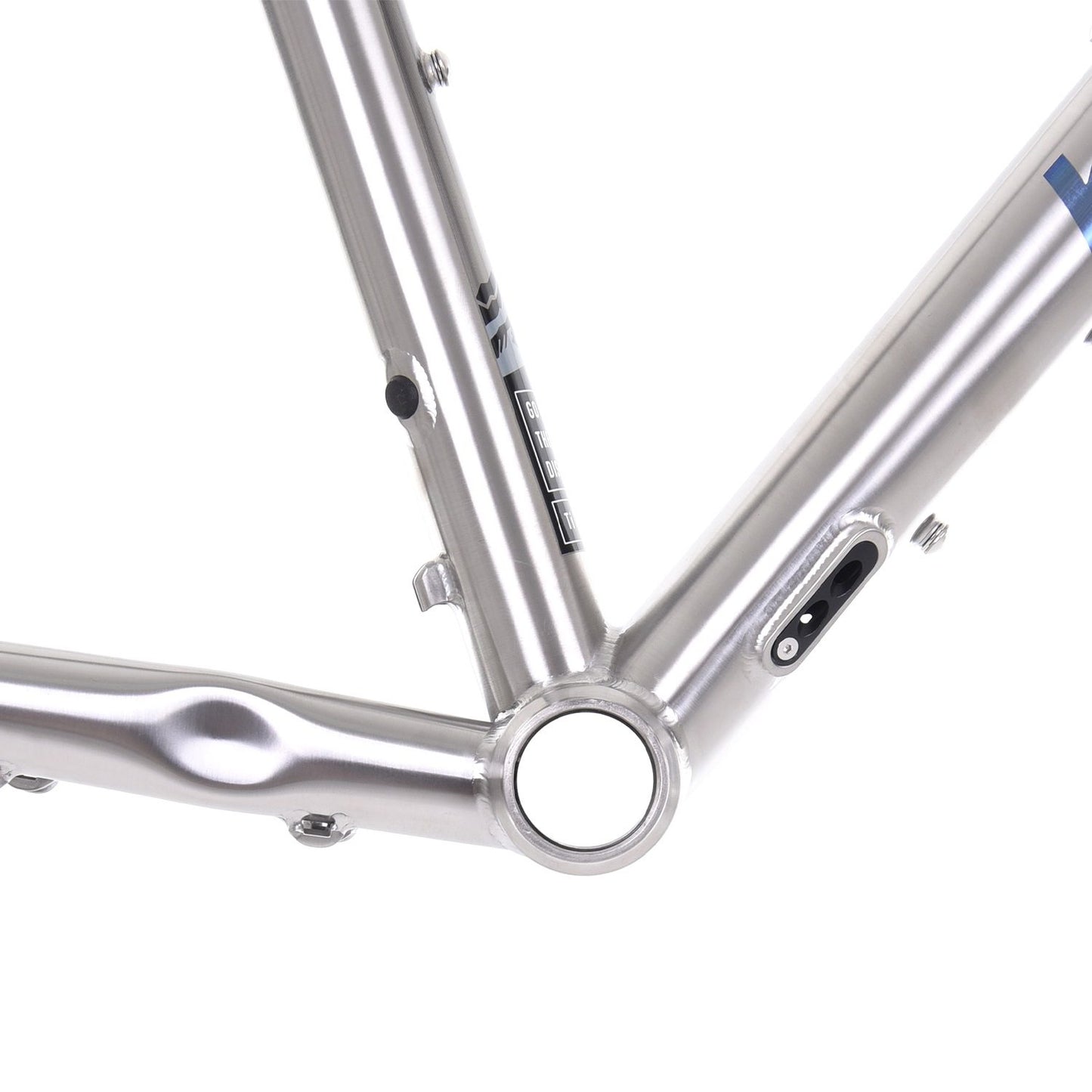

NEW Revised BB Shell — Increased internal space to allow the use of 30mm axle cranks with Di2 internal routing.
NEW Improved Cable Routing — Provisions for full gear outer cable from the shifter to the rear derailleur. This protects against water and dirt ingress, preserving shifting performance for longer.
Curved seat stays — Maximises rear-end compliance for vibration damping, whilst the straight chain stays stiffens the frame laterally for maximum power transfer.
12mm Thru Axle Front and Rear — Industry standard for maximum wheel security and bike stiffness. With a removable GW Switch Lever, giving a clean, elegant look.
Adaptable Cable Ports — Versatility with set-up choice for any major groupset.
Abundance of mounts — Bottle mounts, rack mounts, mudguard mounts, for versatile all-season riding.
Thru Axle Located Derailleur Hanger — Thru Axle locates through the hanger for maximum hanger rigidity, with no negative effect on deformation during impact.
Custom CNC dropouts — With discreet Di2 routing.

FRAME: Custom drawn 3Al 2.5v titanium tubing.
FORK: Kinesis carbon monocoque disc tapered fork.
HEADSET: GW Tapered headset with ACB Bearings.
AXLES: 142x12mm Thru Axle rear spacing. 100x12mm Thru Axle front fork. GW ‘Switch Lever’ axles front and rear.
TYRE CLEARANCE: Clearance for up to 34mm tyres. Clearance for up to 30mm tyres with guards.
GROUPSET: Compatible with Mechanical and Di2 systems (1x and 2x).
BOTTLE MOUNTS: Three bottle cage mounts.
MUDGUARD AND LUGGAGE: Mudguard and rack mounts.
FRONT MECH: 34.9mm Front Mech clamp size.
BOTTOM BRACKET: 68mm threaded Bottom Bracket.
SEATPOST: 31.6mm Seatpost required.
FRAME SUPPLIED WITH: fork, headset, titanium seat clamp, front & rear Thru Axle, frame ports and cable guides.
WARRANTY: 5 years
WEIGHT: XXS (48cm) - 1.63kg.XS (50cm) - 1.66kg.SM (52cm) - 1.70kg.MD (54cm) - 1.74kg.LG (56cm) - 1.79kgXL (58cm )- 1.84kg.XXL (60cm )- 1.90kg.
