J.Guillem

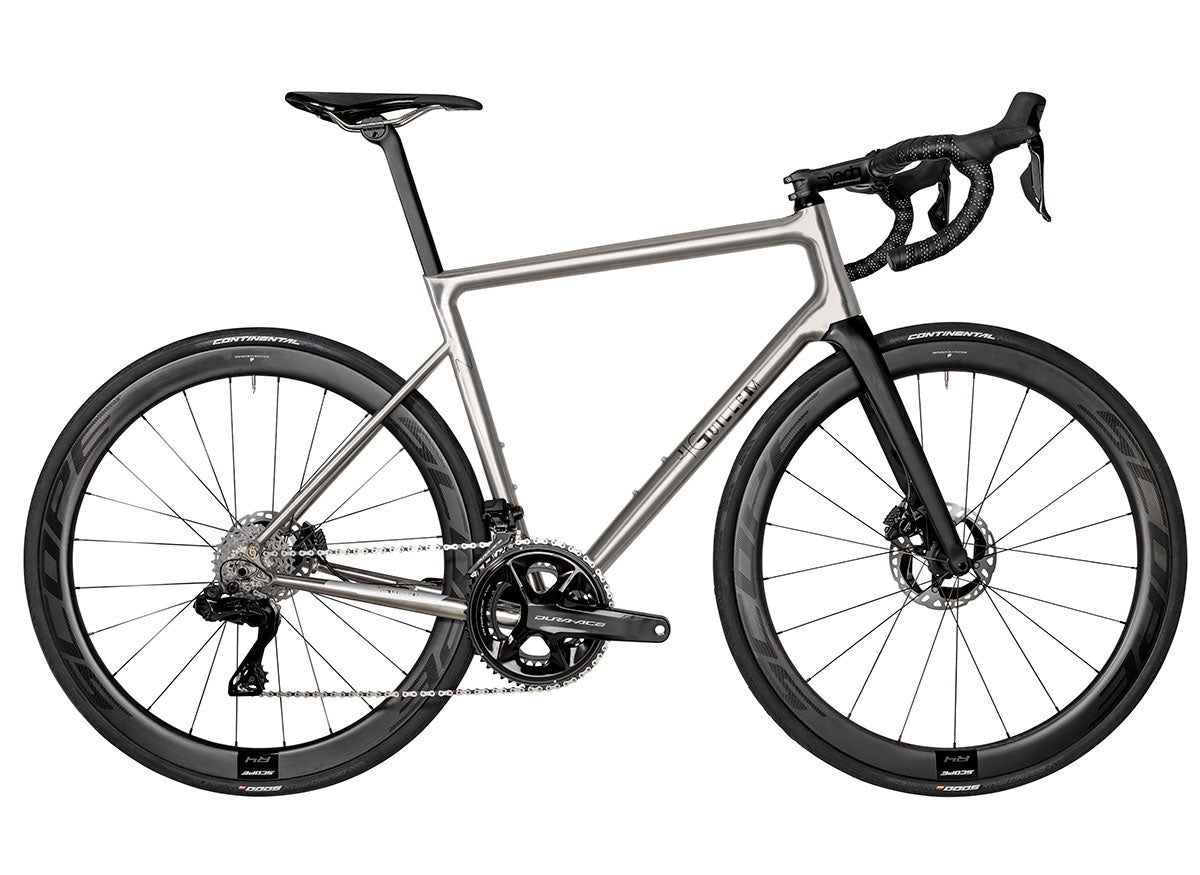

J.Guillem Formentor Disc 2x 12 Shimano Ultegra Di2 Complete Bike

J.Guillem Formentor Disc 2x 12 Shimano Ultegra Di2 Complete Bike

Regular price £6,199.00
Regular price Sale price £6,199.00
Sale Sold out
Tax included.
Size

One glance at this frame tells you it means business. Seeking to create the perfect blend of rigidity, stability, comfort and power, Jan has been uncompromising in both this frame’s design and construction.

The Formentor combines aero-optimised, hydro-formed tubing and an aggressive racing geometry frame set, to produce a no-compromise, race-bred machine that transfers every joule of your energy into lossless kinetic motion. Choose Formentor as the superstructure for your racing bike and power, precision and poise will be at your command.

DESIGNED FOR OUT-AND-OUT, UNCOMPROMISED SPEED

If you’re looking to build a bike to go fast uphill, downhill, around corners and especially on the straight, base it around the Formentor frame. A triumph of function and form, it is as potent to ride as it is beautiful to look at.

· Competitive racing geometry
· Seamless hydroformed 3Al/2.5V Titanium tubing
· High lust polished finish with bead blast effects
· Tapered 11-8” to 11-4” head tube system

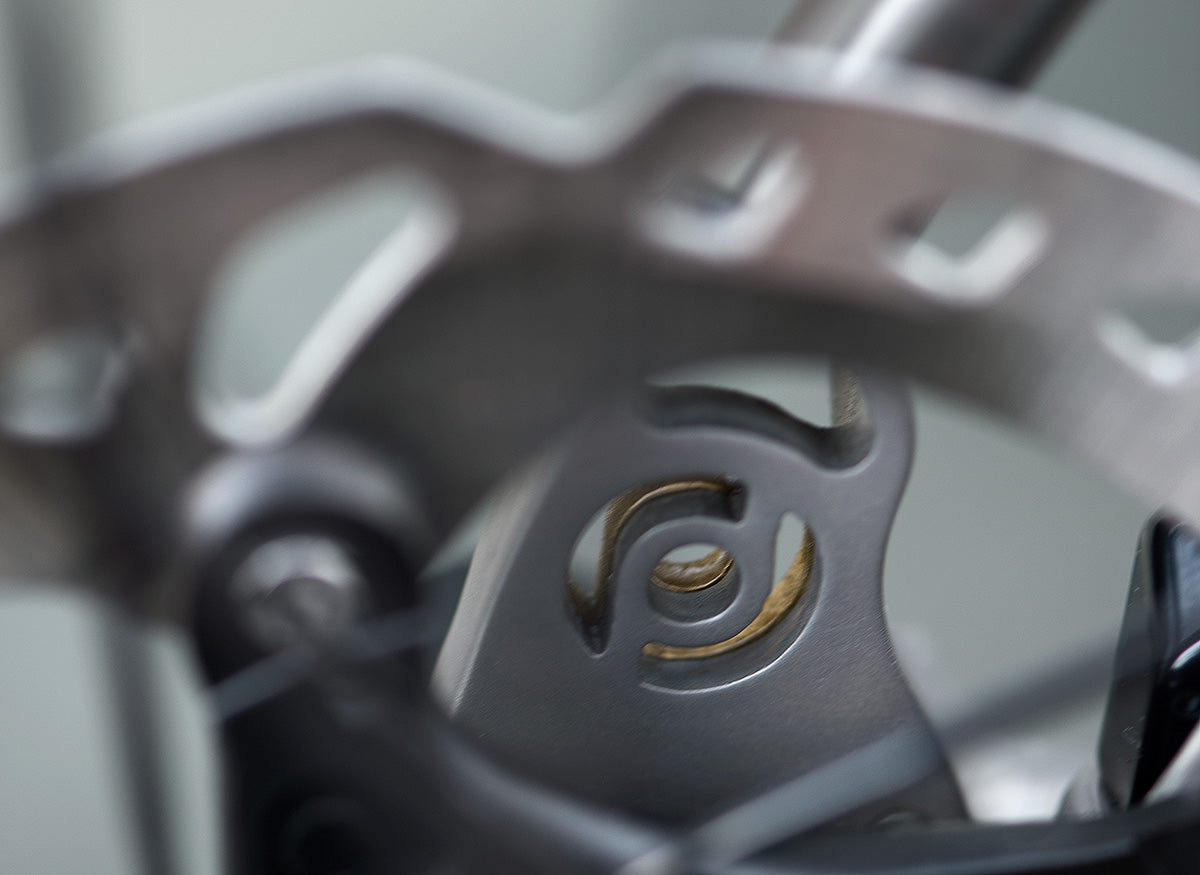

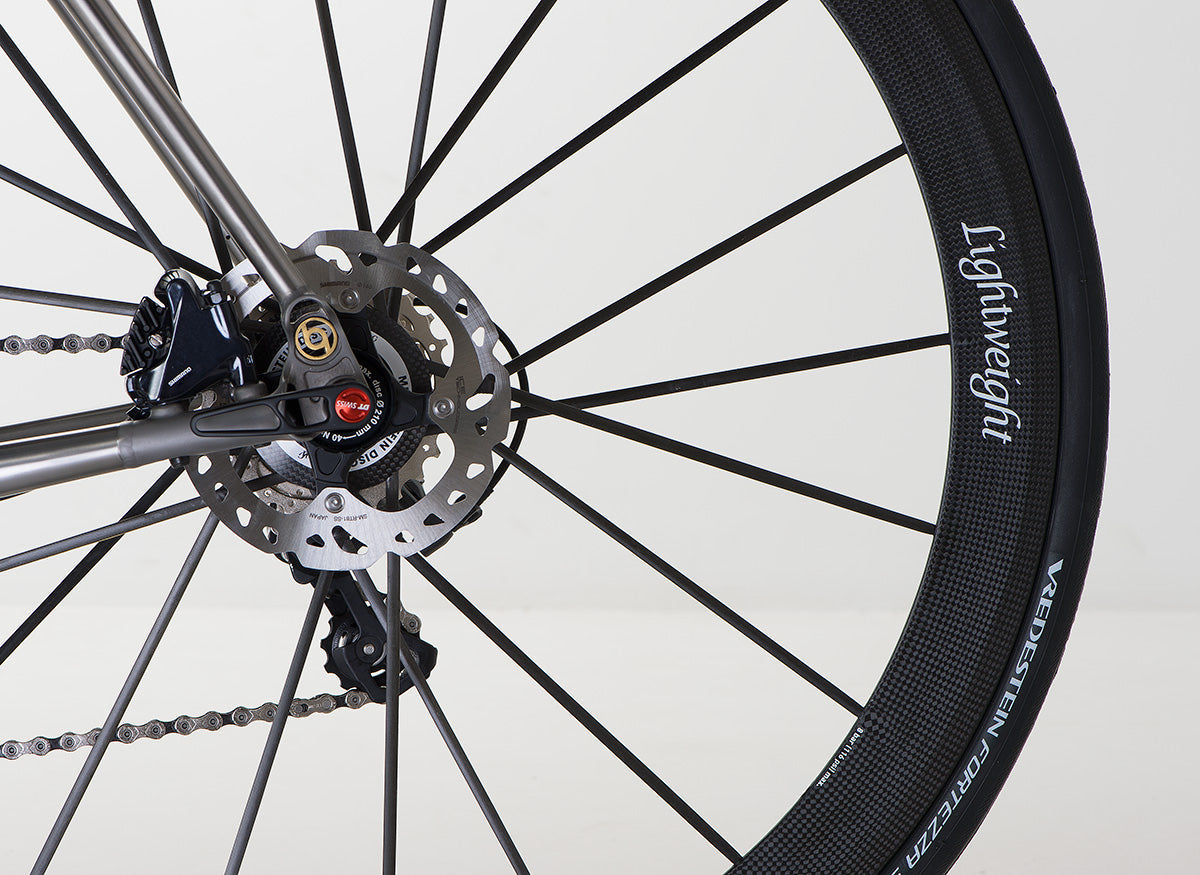

· J.Guillem project casted 3D drop outs
· Aero optimized tubing
· Internal cable routing, DI2 compatible.

 IMPORTANT:

Frameset option includes:

Frame, Forks, Headset, Saddle, Thru axles, Handlebar, Stem, Seat Post & Collar


FOR GEOMETRY INFORMATION CLICK HERE



Size 52cm 54cm 56cm 58cm 60cm
Seat Tube Length CTT 490mm 510mm 530mm 550mm 570mm
Seat Tube Length CTC 455mm 475mm 495mm 515mm 535mm
Effective Top Tube Length 535mm 550mm 565mm 580mm 600mm
Actual Top Tube Length 519mm 534mm 549mm 564mm 584mm
Head Tube Angle 73° 73° 73,5° 73,5° 73,5°
Seat Tube Angle 74° 73.5° 73.25° 73° 72.5°
Head Tube Length 140mm 155mm 170mm 190mm 205mm
Wheel Base 967mm 978mm 986mm 1001mm 1018mm
Front Center 573mm 583mm 591mm 603mm 618mm
Bottom Bracket Drop 70mm 70mm 70mm 68mm 68mm
Chain Stay Length 405mm 405mm 405mm 407mm 410mm
Stand Over Height 759mm 774mm 792mm 812mm 828mm
Stack 544mm 558mm 574mm 591mm 606mm
Reach 379mm 384mm 392mm 400mm 410mm
View full details
