J.Guillem Formentor Disc 2x 12 Shimano 105 Di2 Complete Bike
J.Guillem Formentor Disc 2x 12 Shimano 105 Di2 Complete Bike
One glance at this frame tells you it means business. Seeking to create the perfect blend of rigidity, stability, comfort and power, Jan has been uncompromising in both this frame’s design and construction.
The Formentor combines aero-optimised, hydro-formed tubing and an aggressive racing geometry frame set, to produce a no-compromise, race-bred machine that transfers every joule of your energy into lossless kinetic motion. Choose Formentor as the superstructure for your racing bike and power, precision and poise will be at your command.
DESIGNED FOR OUT-AND-OUT, UNCOMPROMISED SPEED
If you’re looking to build a bike to go fast uphill, downhill, around corners and especially on the straight, base it around the Formentor frame. A triumph of function and form, it is as potent to ride as it is beautiful to look at.
· Competitive racing geometry
· Seamless hydroformed 3Al/2.5V Titanium tubing
· High lust polished finish with bead blast effects
· Tapered 11-8” to 11-4” head tube system

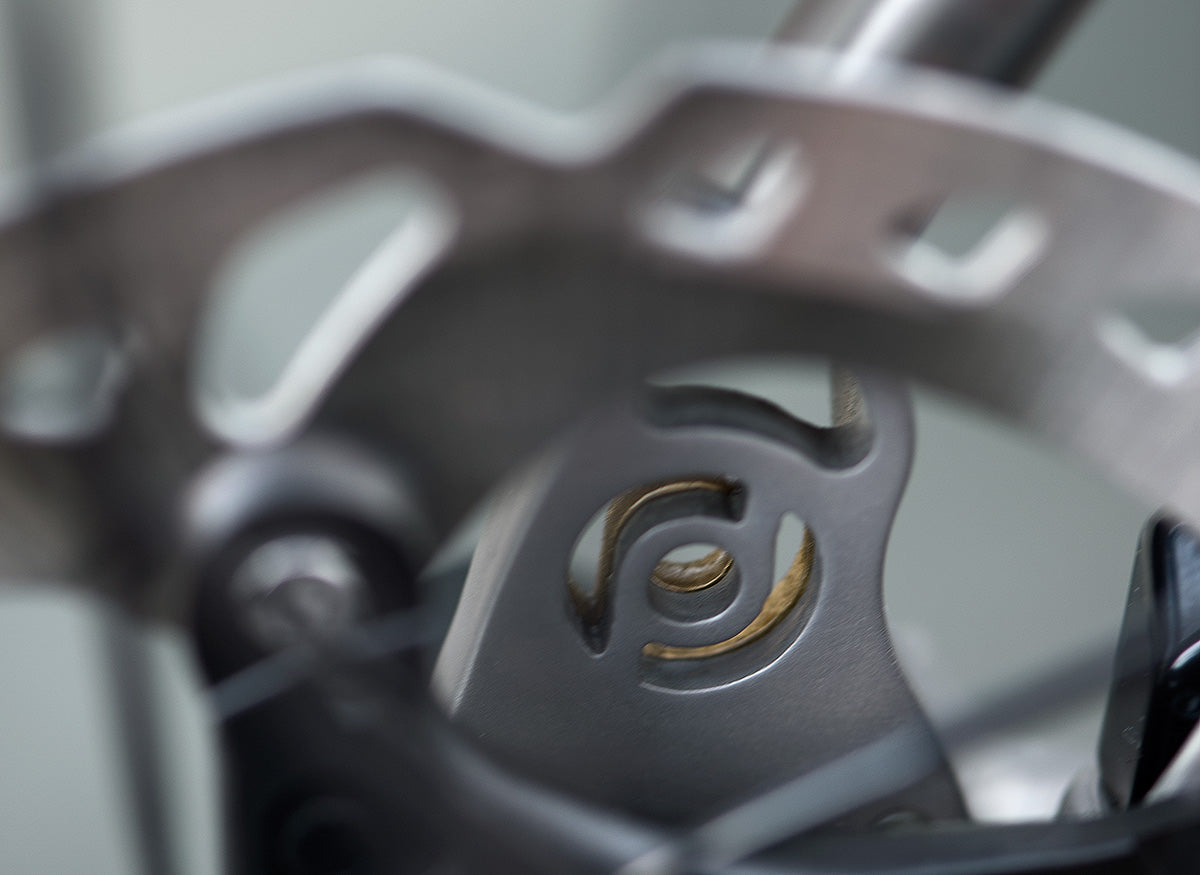

· J.Guillem project casted 3D drop outs
· Aero optimized tubing
· Internal cable routing, DI2 compatible.
IMPORTANT:
Frameset option includes:
Frame, Forks, Headset, Saddle, Thru axles, Handlebar, Stem, Seat Post & Collar
FOR GEOMETRY INFORMATION CLICK HERE
Size | 52cm | 54cm | 56cm | 58cm | 60cm | |
---|---|---|---|---|---|---|
Seat Tube Length CTT | 490mm | 510mm | 530mm | 550mm | 570mm | |
Seat Tube Length CTC | 455mm | 475mm | 495mm | 515mm | 535mm | |
Effective Top Tube Length | 535mm | 550mm | 565mm | 580mm | 600mm | |
Actual Top Tube Length | 519mm | 534mm | 549mm | 564mm | 584mm | |
Head Tube Angle | 73° | 73° | 73,5° | 73,5° | 73,5° | |
Seat Tube Angle | 74° | 73.5° | 73.25° | 73° | 72.5° | |
Head Tube Length | 140mm | 155mm | 170mm | 190mm | 205mm | |
Wheel Base | 967mm | 978mm | 986mm | 1001mm | 1018mm | |
Front Center | 573mm | 583mm | 591mm | 603mm | 618mm | |
Bottom Bracket Drop | 70mm | 70mm | 70mm | 68mm | 68mm | |
Chain Stay Length | 405mm | 405mm | 405mm | 407mm | 410mm | |
Stand Over Height | 759mm | 774mm | 792mm | 812mm | 828mm | |
Stack | 544mm | 558mm | 574mm | 591mm | 606mm | |
Reach | 379mm | 384mm | 392mm | 400mm | 410mm |
