Guillem Orient Shimano 2x 12 Ultegra Di2 build

Guillem Orient Shimano 2x 12 Ultegra Di2 build

Regular price £5,649.00
Regular price Sale price £5,649.00
Sale Sold out
Tax included.

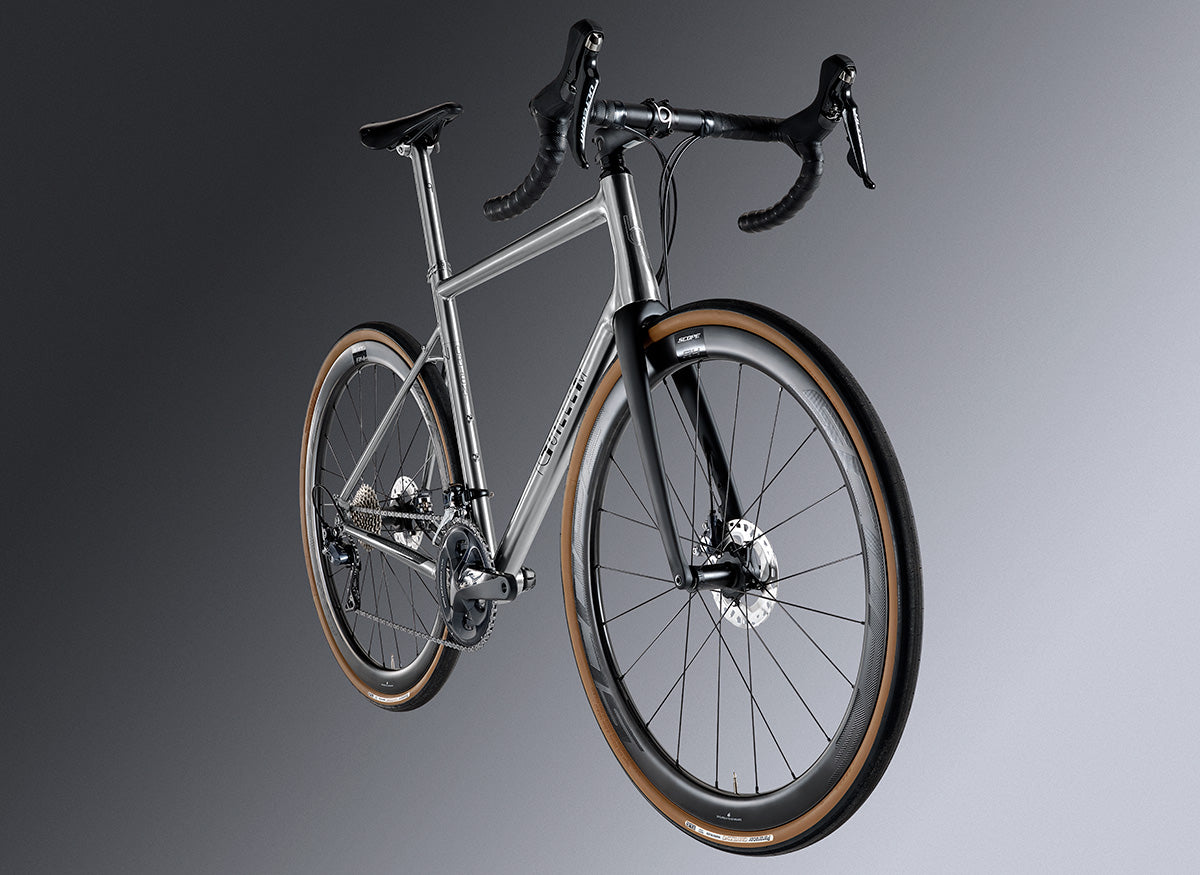

The Orient is Jan’s perfect pragmatist; enabling you to build a bike customized exactly to your riding style, readily adaptable to seasonal conditions and the changing challenges they throw up. With light, strong tubing and geometry designed to bring out the endurance qualities of Titanium, Audax riding is well within its comfort zone.

But when you add in drop outs for mudguards, and disc brakes, the Orient’s versatility and ruggedness make it ideal for longer commutes, winter training, camping or even relaxed summer evening rides.


The Orient has been designed for the sheer pleasure of riding the open road, certain in the knowledge you have a machine that can cope with whatever demands you make of it. Featuring J. Guillem-trademark stiff, light and durable tubing in more relaxed angles, it’s the basis for a be-anything-you-want-it-to-be-bike.

- Endurance road geometry
- Seamless aerospace grade 3Al/2.5V Ti tubing
- Beautifully hand brushed finish

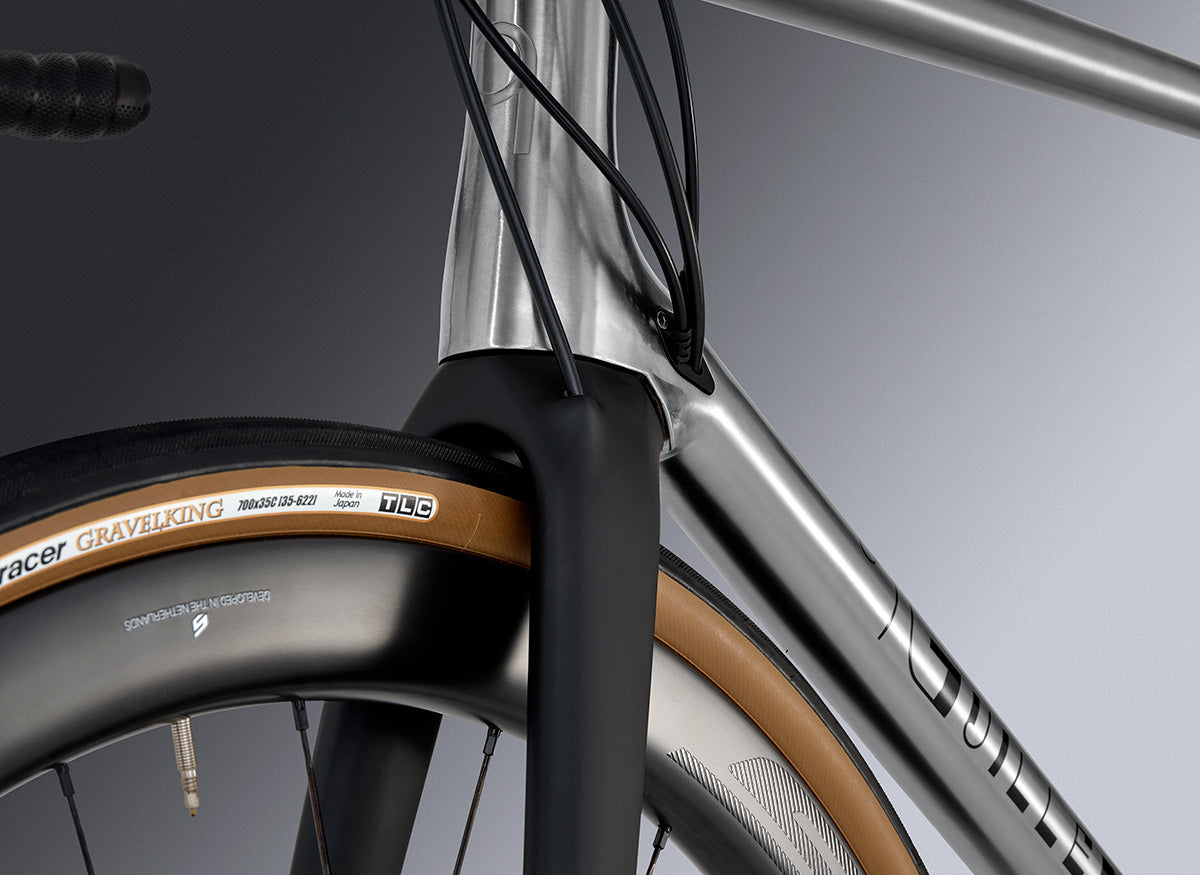

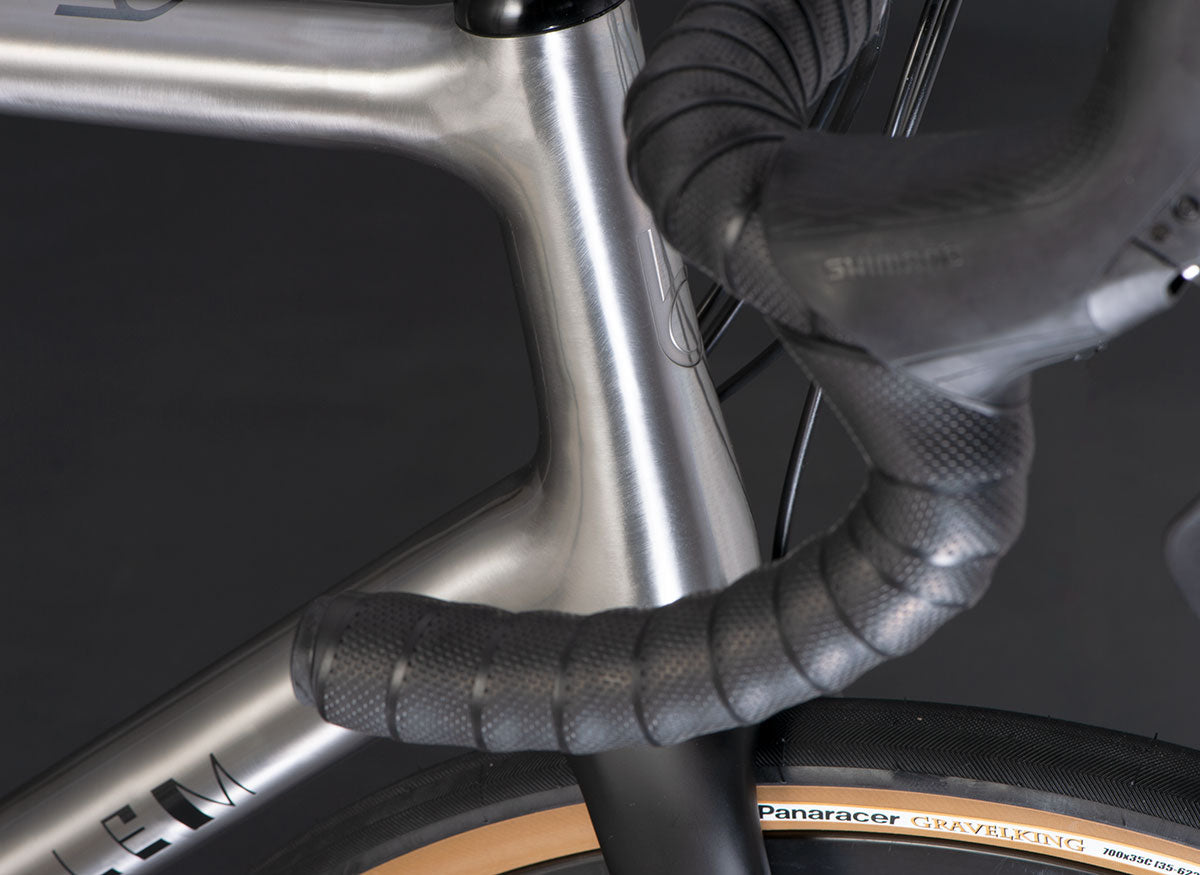

- Tapered 11-8” to 11-2” head tube system

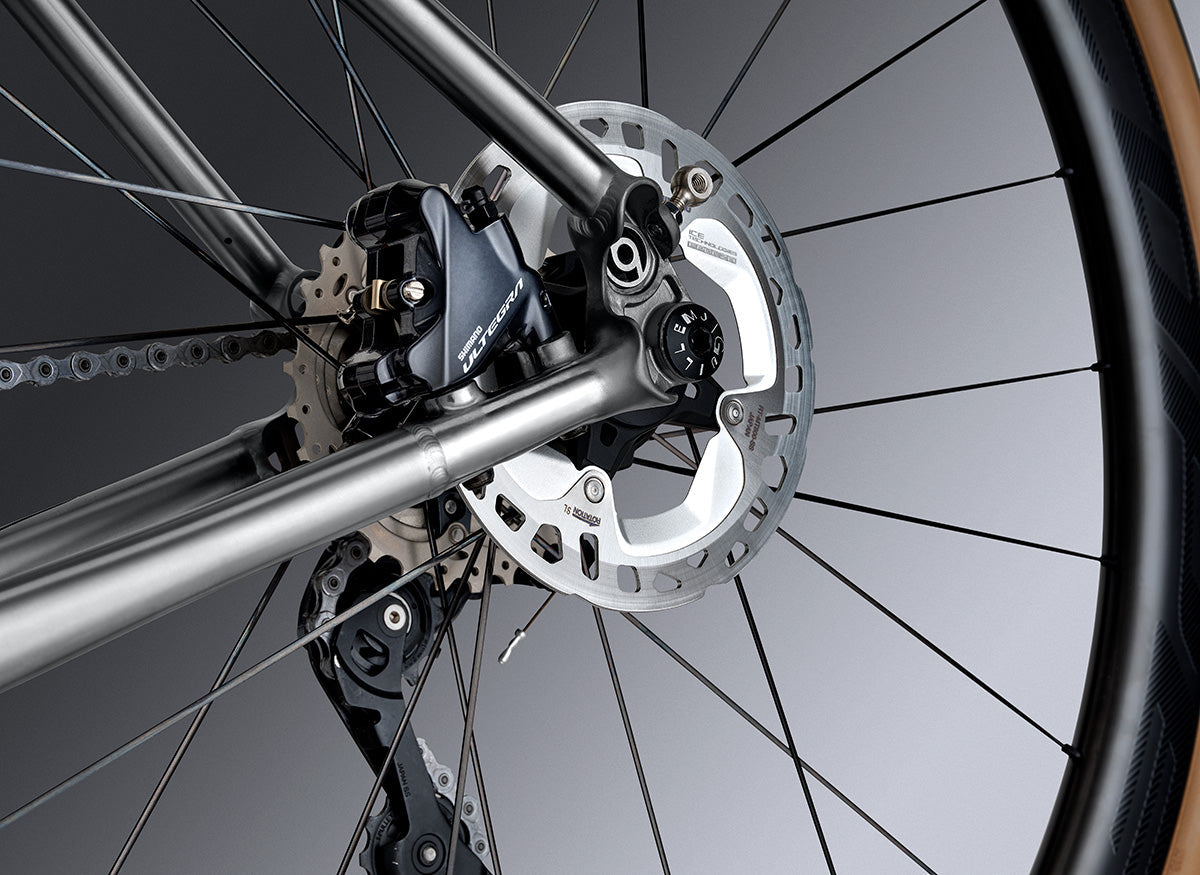

- J.Guillem project casted 3D disc drop outs

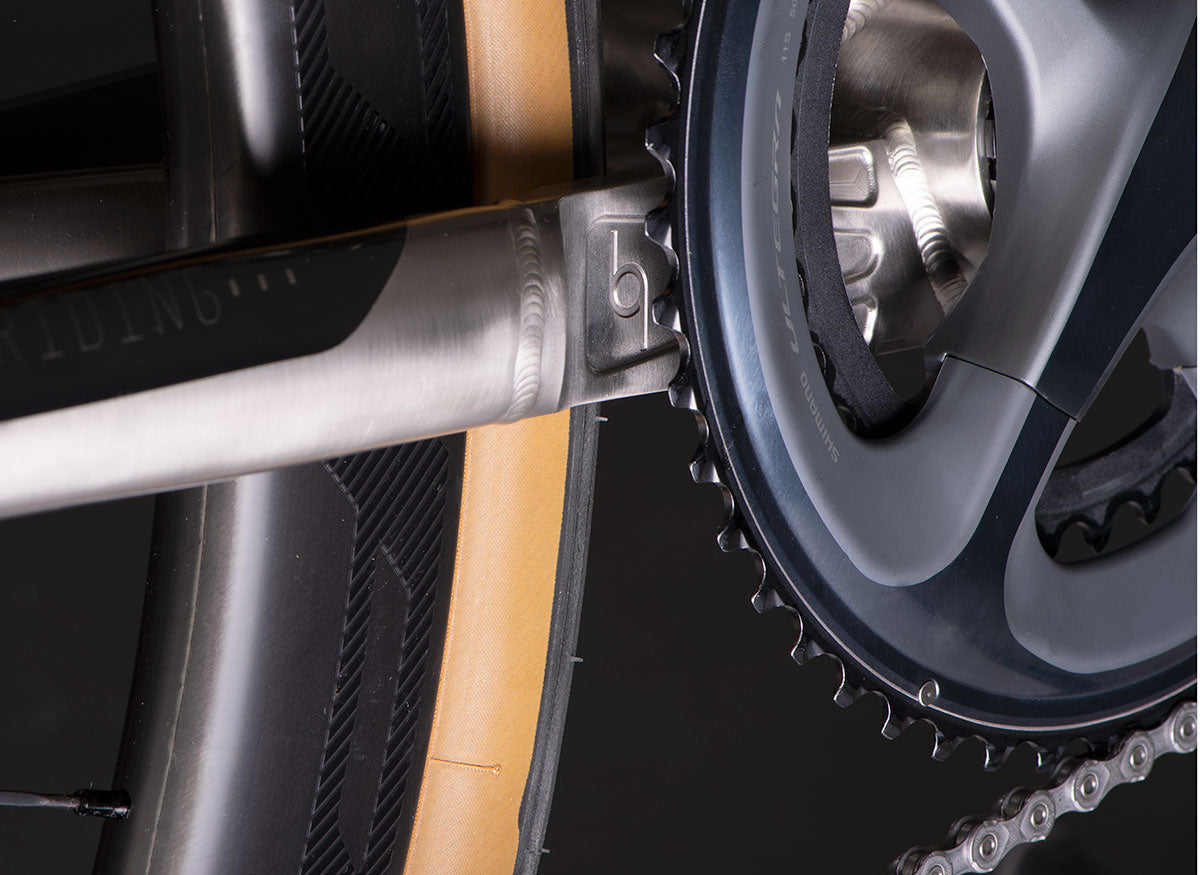

- Cast titanium T47 Bottom Bracket system
- Internal cable routing, DI2 compatible
- Disc brake specific frame design
- Maximum tire size 35mm

SIZE 49CM 52CM 54CM 56CM 58CM 60CM 62CM
Seat Tube Length CTT 460mm 490mm 510mm 530mm 550mm 570mm 590mm
Seat Tube Length CTC 425mm 455mm 475mm 495mm 515mm 535mm 555mm
Effective Top Tube Length 520mm 531mm 540mm 558mm 574mm 587mm 600mm
Actual Top Tube Length 503mm 513mm 521mm 538mm 553mm 565mm 580mm
Head Tube Angle 71° 72° 72° 72,5° 72,5° 73° 73°
Seat Tube Angle 74.5° 74° 73.5° 73.25° 73° 72.5° 72.5°
Head Tube Length 150mm 150mm 165mm 180mm 200mm 215mm 220mm
Wheel Base 982mm 994mm 998mm 1009mm 1022mm 1024mm 1037mm
Front Center 579mm 585mm 589mm 600mm 613mm 615mm 628mm
Bottom Bracket Drop 75mm 75mm 75mm 75mm 75mm 75mm 75mm
Chain Stay Length 420mm 420mm 420mm 420mm 420mm 420mm 420mm
Stand Over Height 763mm 763mm 779mm 797mm 813mm 830mm
Stack 553mm 557mm 571mm 587mm 606mm 624mm 627mm
Reach 367mm 371mm 371mm 381mm 389mm 391mm 402mm
