DT Swiss

DT Swiss AR1600 Spline 30mm Disc Brake Front Wheel

DT Swiss AR1600 Spline 30mm Disc Brake Front Wheel

Regular price £239.00
Regular price Sale price £239.00
Sale Sold out
Tax included.
  • Aero For All! The AR 1600's are designed to offer the highest aero performance yet seen from an alloy system, whether you're looking for a race wheelset for evening circuits or a dependable but speedy set of training hoops
  • 20mm internal width rims are the first alloy rim profile developed with DT's Aero research team at Swiss Side, no other alloy rim has had more in-depth aero testing both in terms of CFD simulations and Wind Tunnel time
  • The rim is of course only part of the equation and the AR 1600's use super deep Aero Comp II spokes and hidden nipples to further minimise drag

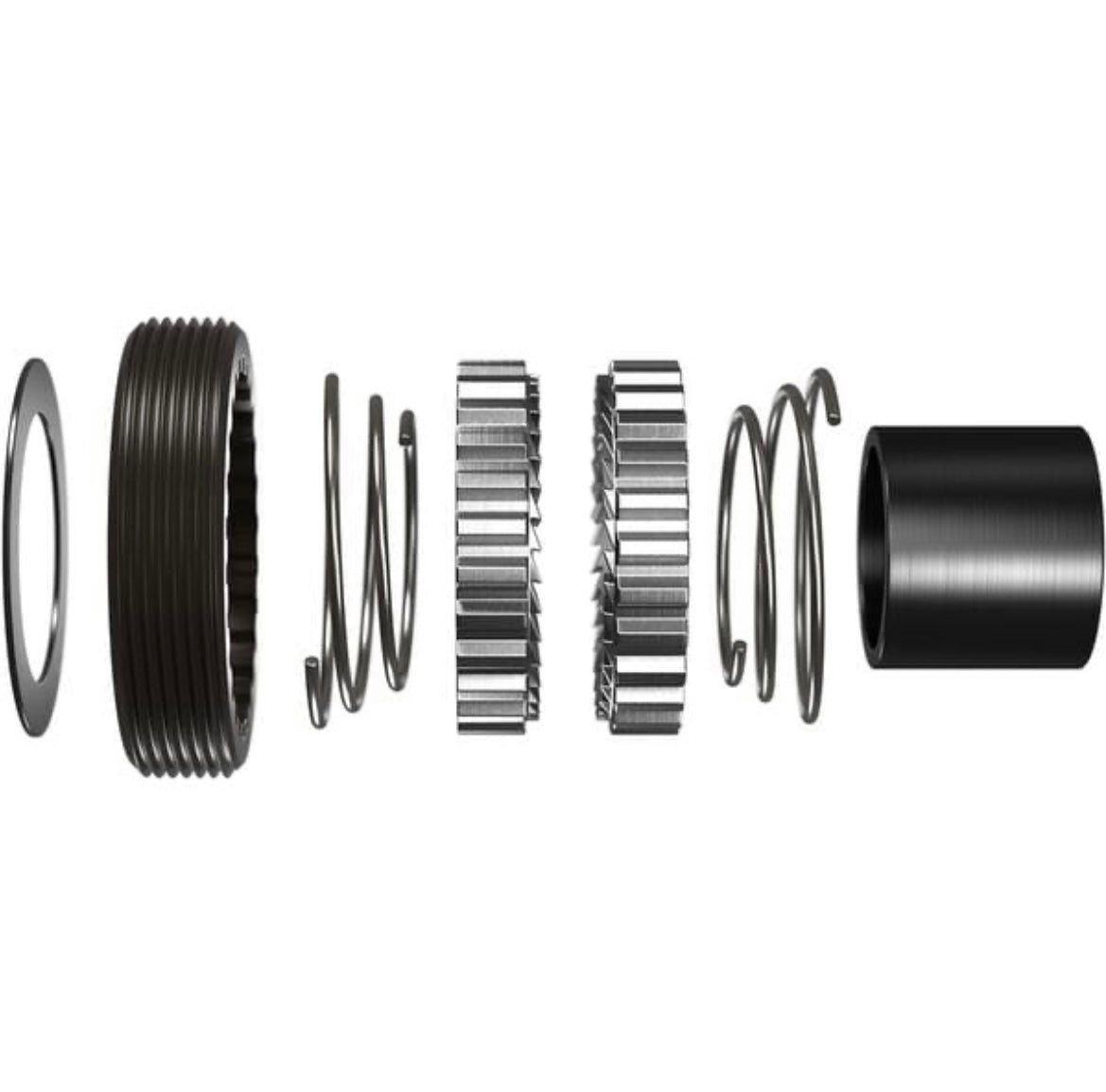

  • 350 hubs use 36-tooth SL ratchets, giving a great balance between engagement, low noise, minimal drag and long term reliability, especially in poor conditions
  • The Swiss-made DT ratchet system remains the gold standard for reliability, low-weight and ease of servicing, which is why it's relied upon everywhere from the Tour De France to the World Cup Downhill circuit
  • Hand built in Europe using Swiss-made spokes and premium Prolock Squorx nipples for long term build stability and ease of maintenance
  • Tubeless ready but can also be used with standard clinchers
  • Front wheel comes ready for standard 12 x 100 mm thru axles. The rear comes ready for standard 12 x 142 mm thru axles, both can be adapted for other axles using adaptors (available separately)
  • Maximum recommended system weight: 110 KG
  • When bought as a pair they will include tubeless rim tape and valves.
  • Weight: Front 808 grams Rear: 895 grams
  • Axle Type
    Bolt Thru 12mm
  • Brake Type
    Disc
  • Colour
    Black
  • Discipline
    Road
  • Freehub
    SRAM XDR
  • Hub Width
    142mm
  • Rim Depth
    25 - 35mm
  • Rim Type
    Alloy Clincher
  • Rim Width
    20 - 25mm
  • Product Type
    Back Wheels


Endurance means to pursue a goal, no matter what might happen on the way. The new DT Swiss Endurance line is designed with this goal in mind. It unites top notch performance with comfort and reliability. Now bring on the cracks in the tarmac, rain and headwind situations.

ER 1600 SPLINE® 30

AERO FOR ALL SPECIFICATIONS

12 / 100 mm 12 / 142 mm

350 Straightpull with 36T Ratchet SL System Disc, Center Lock
Shimano Road, SRAM XDR

Aluminum, sleeved rim joint, hooked bead, tubeless ready 584 x 22 mm
622 x 22 mm
30 mm

DT aero comp® || straightpull, black DT aero comp® || straightpull, black DT ProLock Squorx ProHead alu
24 x 2-cross

Weight: 858 g

weight limit: 130 kg

Included:DT Swiss tubeless ready tape (mounted), DT Swiss tubeless valve, valve guard

HUB

BRAKE INTERFACE FREEHUB BODY OPTIONS
RIM DIMENSION

RIM HEIGHT

SPOKE FRONT SPOKE REAR NIPPLES LACING
