Colnago C68-Ti Rim or Disc Brake Frameset

The Colnago C68 ti is available in a limited edition with titanium lugs. With this option Colnago will employ 3D printing technology, starting from a digital model to create a three-dimensional physical object, the construction technique of the future. Why titanium? Titanium is the best 3D printable material and is one of the few materials that are naturally compatible with carbon fibre in mechanical engineering. The printable lugs in titanium allow practically unlimited options and allow, if necessary or requested, to achieve the true "made to measure" frame sizes. To create these parts we are collaborating with a leading Italian company operating in the medical sector, that is at the pinnacle of precise and efficient 3D printing.

Receive a gift voucher for 10% of the value of your purchase when buying this frame

This is a special order Frameset, delivery can be up to 8 weeks.

The frame and other technical features The Colnago C68 Ti is made using a modular structure which is at the heart of the project and provides its excellence. Bonding the various parts of the frame, instead of assembling them inside a mould as happens with monocoque frames, still represents a uniqueness that allows for the creation of more sizes as necessary and, if desired, even a "made to measure" frame thanks to the titanium lugs.

The number of parts that constitute the frame is the same as with the previous C series even though, from an aesthetic point of view, its line may be more similar to that of a frame manufactured in one piece. The choice was dictated by the search for a modern look, but always remaining desirable to the traditional Colnago customer, thus widening the range of purchasing possibilities.

From a structural point of view there are some noteworthy differences compared to the predecessor, C64: the bottom bracket, now with the standard T47, has merged with the seat tube while the "top tube" is characterized by the presence of two lugs: one connected with the seat tube, the other with the steering tube. These lugs are integral with each other in the full carbon frame version, but there is the possibility of having these two lugs in titanium alloy.

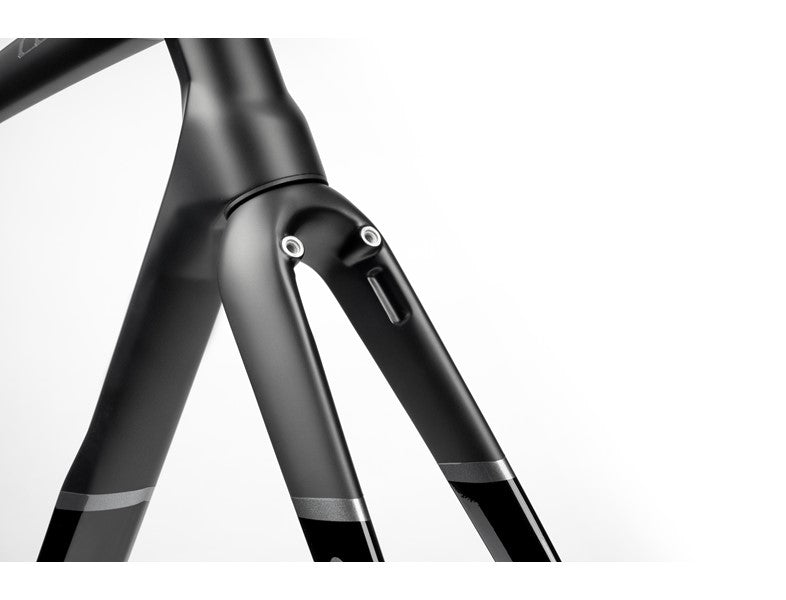

In addition to being lighter than the C64 in similar sizes, the frame is more rigid, especially in the steering area, giving better precision while riding. The shape refinement process has also made it possible to optimize some parts of the frame including the fork, now more rigid and lighter than the previous one, with an innovative internal cable routing and which, thanks to the shape of the new head tube, can be built without the current and more complex "D" shape.

Remaining in the front section of the frame, note the integration of a ten-function multitool placed directly inside the steering cap (four-function multitool for the two smaller frame sizes). To maintain continuity in terms of spare parts and ease of production, the shape of the seat post is identical to that of the C64 and V3Rs.

3D-printed titanium joints

The C68 Road Ti is constructed of modular carbon with two 3D-printed titanium joints. These are the joint between the head tube and top tube, and the joint between the top tube and seat post. The different material properties give unique riding emotions.

Tyres up to 32 mm

The bicycle is evolving: more space for tyres allows us to meet the needs of all cyclists and to be compatible with the largest number of wheels and tyres on the market.

T47 bottom bracket

Larger diameter bearings have better endurance and reduce rolling friction.

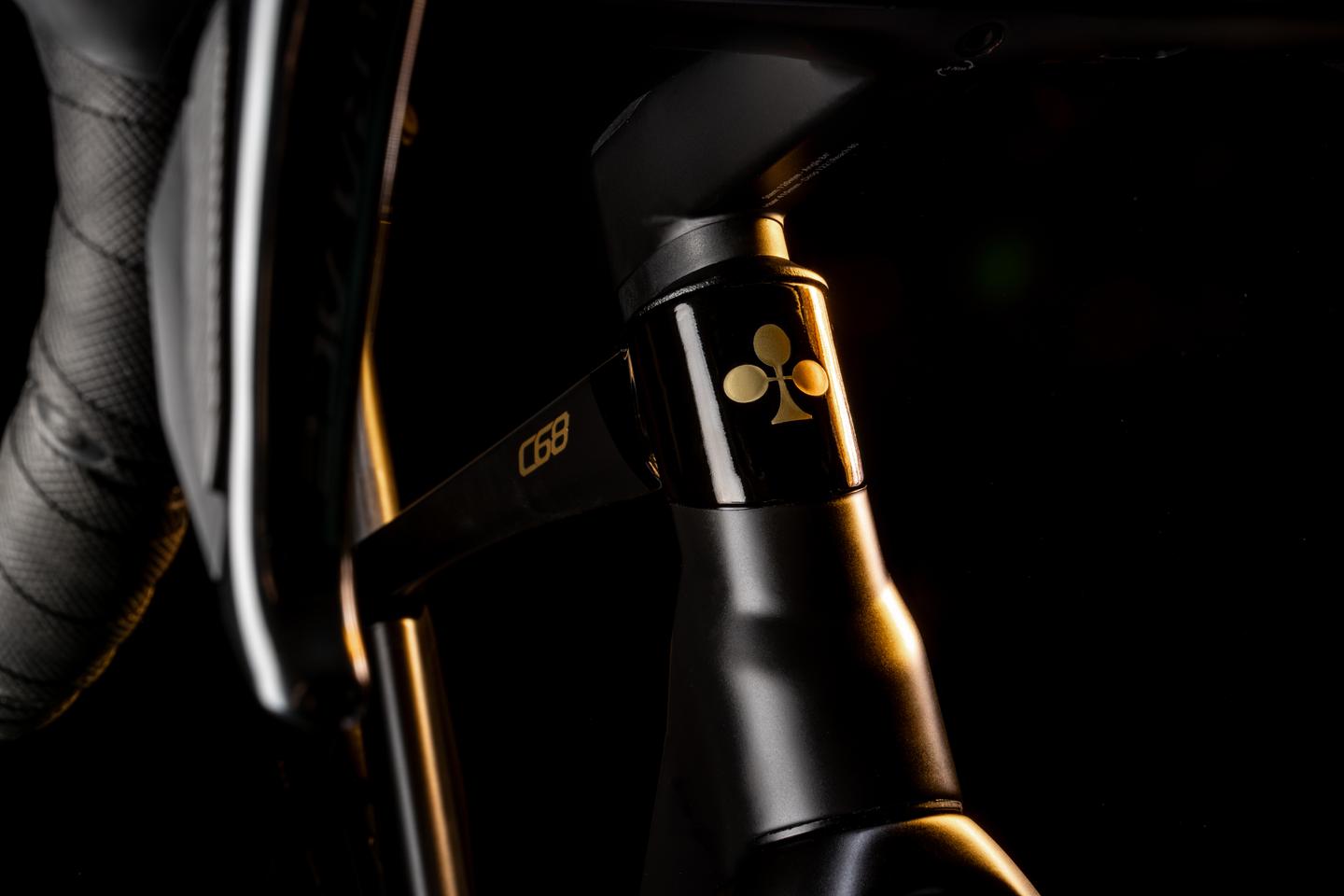

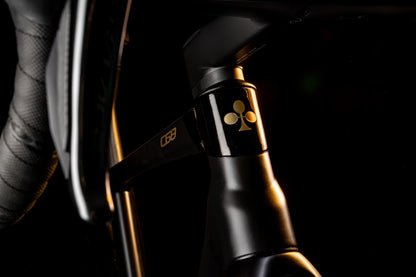

Rigidity and steering precision with the new steerer tube

The larger diameter compared to the C64 allows greater rigidity and a better feeling of safety when riding on more technical trails.

Integrated multitool

Sooner or later, everyone needs a multitool to deal with any small adjustments that may be necessary during a ride (such as a flat tyre). We have integrated this tool into the top cap of the headset.

Ceramic Speed SLT headset

The headset bearings are treated with Ceramic Speed's SLT technology, which virtually cuts out the need for any maintenance during the life of the product

Aggressive geometries

The geometry of the C68 Road also makes it a suitable bike for those seeking speed and more aerodynamic positions. Reach, stack, head angle and other parameters are comparable to those of the V4Rs, our dedicated race bike.

The C68 proudly continues the tradition of the modular frame.

The frame is constructed from several carbon parts that are hand-assembled in Italy through joints and interlocks. The number of parts that complete the frame (i.e. 9) is greater than on the C68, which has 8: there is an extra joint between the top tube and head tube.

We have introduced a new process: banding.

The carbon bands are applied manually at the joint between the carbon modules, after which they are filed and polished to achieve the look of a monocoque frame with the best Colnago modular frame properties.

Finally, a new option allows for the removal of the front derailleur support for mounting groups with a single-chainring crankset.
