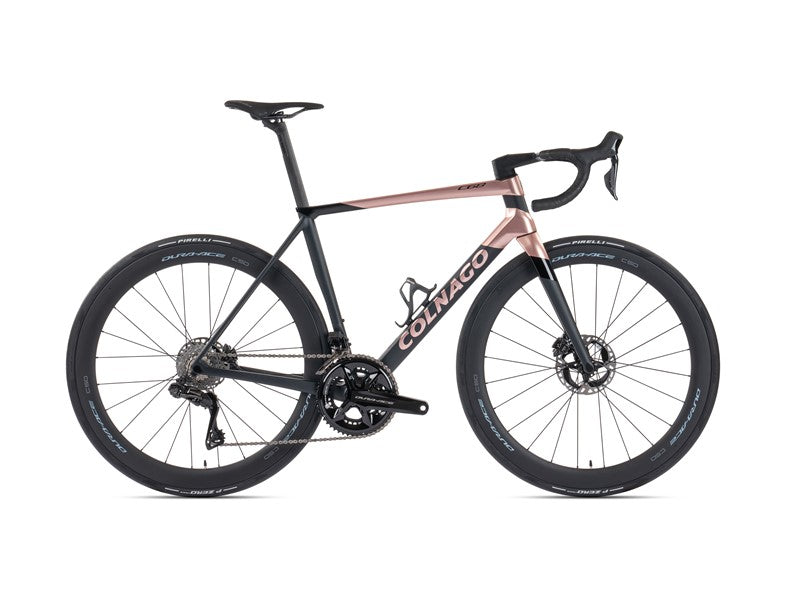

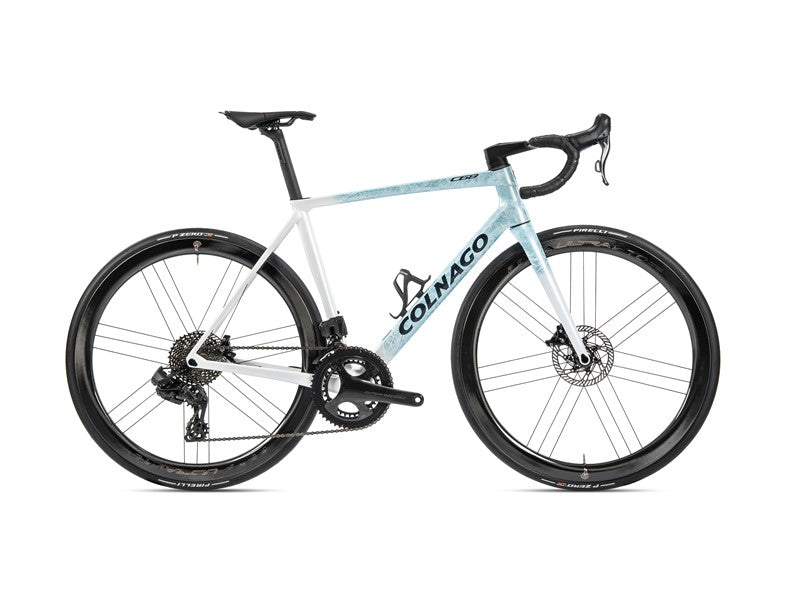

Colnago C68-R Road Cycling Frameset - FREE 10% Voucher
Colnago C68-R Road Cycling Frameset - FREE 10% Voucher
Couldn't load pickup availability
A new icon is born.
Handmade in Italy. In the Colnago C68Road we have channeled all the energy,passion, technology, history and DNA ofColnago to create a bike that is theultimate, the pinnacle of the art of bikebuilding according to Colnago.
DELIVERY IS BETWEEN 2 DAYS - 8 WEEKS
- RECEIVE A GIFT VOUCHER FOR 10% OF YOUR ORDER VALUE WHEN YOU PURCHASE THIS FRAME!!
- CUSTOM BUILD OPTIONS AVAILABLE
This model combines racing geometryand performance details with thetimeless appeal of the modular frame.The C68 Road is a champion of roadbikes. A bike handmade in Italy to beenjoyed and admired.
The frame and other technical features The C68 is made using a modular structure which is at the heart of the project and provides its excellence. Bonding the various parts of the frame, instead of assembling them inside a mould as happens with monocoque frames, still represents a uniqueness that allows for the creation of more sizes as necessary and, if desired, even a "made to measure" frame thanks to the titanium lugs.
The number of parts that constitute the frame is the same as with the previous C series even though, from an aesthetic point of view, its line may be more similar to that of a frame manufactured in one piece. The choice was dictated by the search for a modern look, but always remaining desirable to the traditional Colnago customer, thus widening the range of purchasing possibilities.

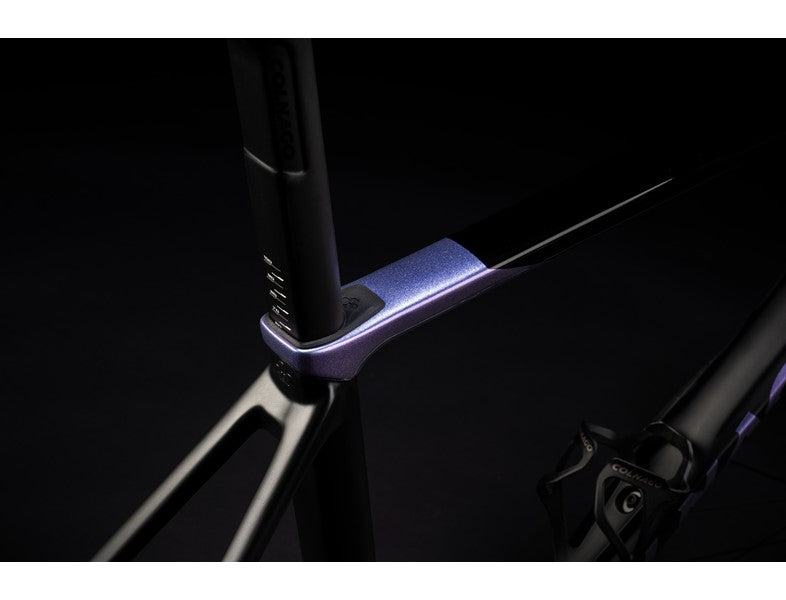

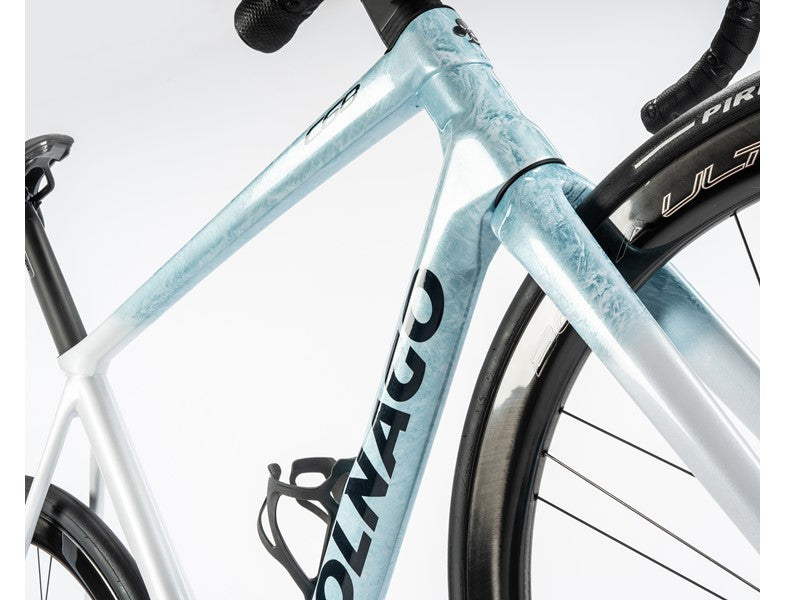

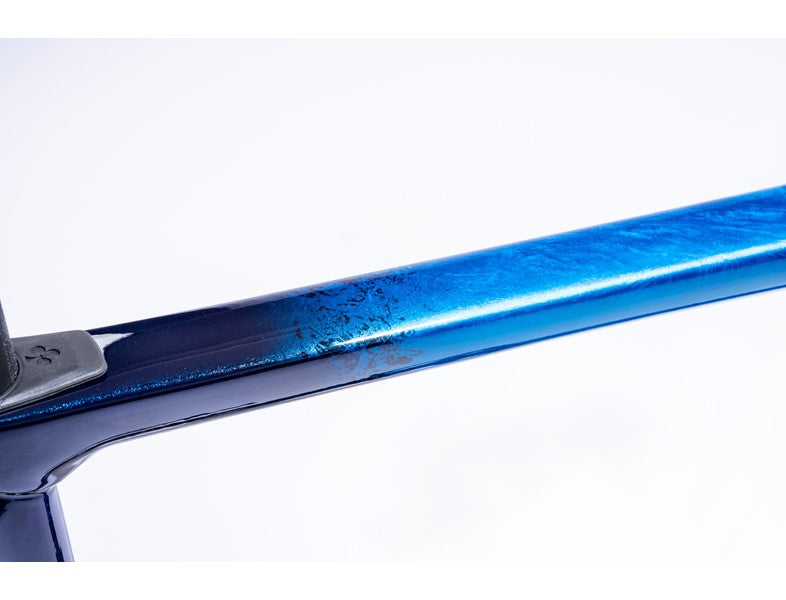

From a structural point of view there are some noteworthy differences compared to the predecessor, C64: the bottom bracket, now with the standard T47, has merged with the seat tube while the "top tube" is characterized by the presence of two lugs: one connected with the seat tube, the other with the steering tube. These lugs are integral with each other in the full carbon frame version, but there is the possibility of having these two lugs in titanium alloy.
In addition to being lighter than the C64 in similar sizes, the frame is more rigid, especially in the steering area, giving better precision while riding. The shape refinement process has also made it possible to optimize some parts of the frame including the fork, now more rigid and lighter than the previous one, with an innovative internal cable routing and which, thanks to the shape of the new head tube, can be built without the current and more complex "D" shape.
Remaining in the front section of the frame, note the integration of a ten-function multitool placed directly inside the steering cap (four-function multitool for the two smaller frame sizes). To maintain continuity in terms of spare parts and ease of production, the shape of the seat post is identical to that of the C64 and V3Rs.
Finally, a new option allows for the removal of the front derailleur support for mounting groups with a single-chainring crankset.
Wheels up to 32 mmThe bicycle is evolving: more space for tyres allows us to meet the needs of all cyclists and to be compatible with the largest number of wheels and tyres on the market. |
![]() |

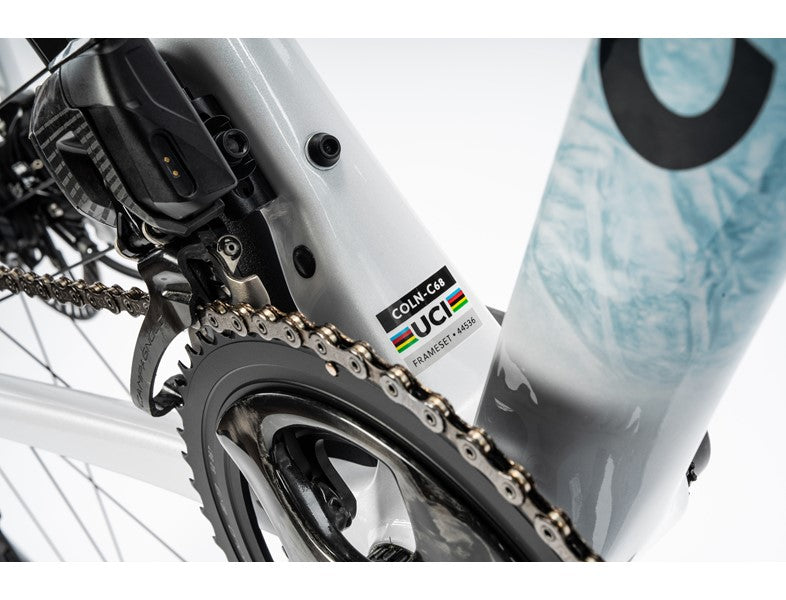

T47 bottom bracketLarger diameter bearings have better endurance and reduce rolling friction.c68 t47 |
![]() |

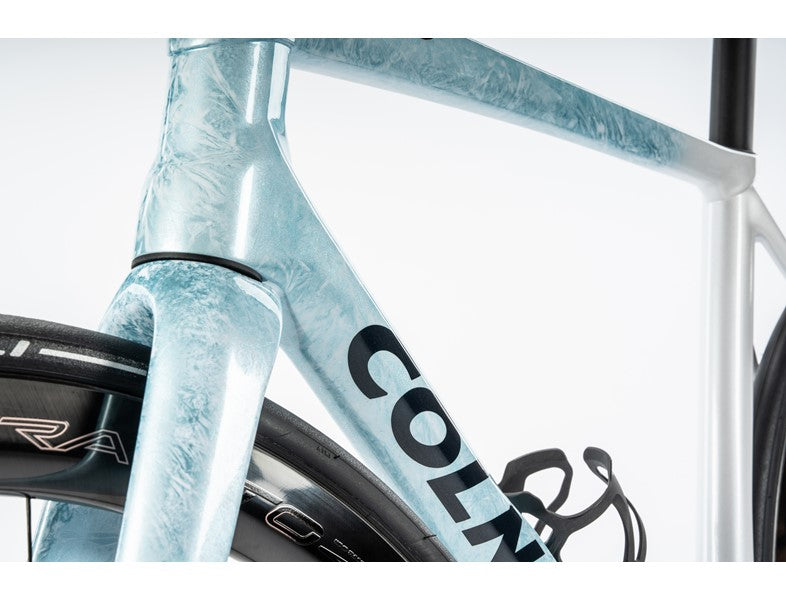

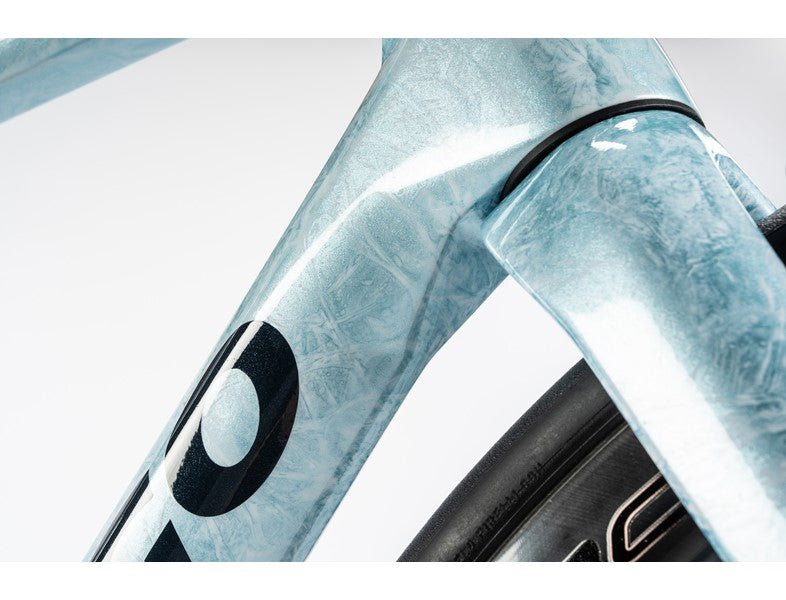

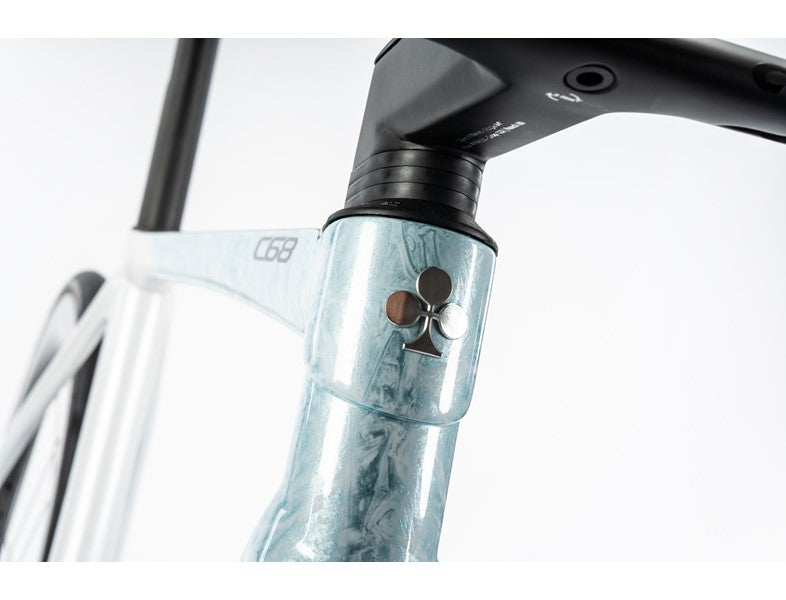

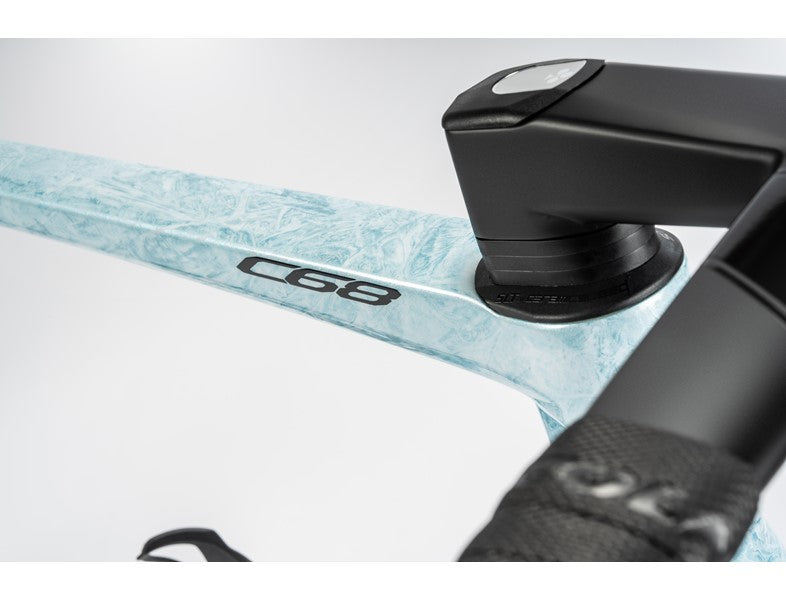

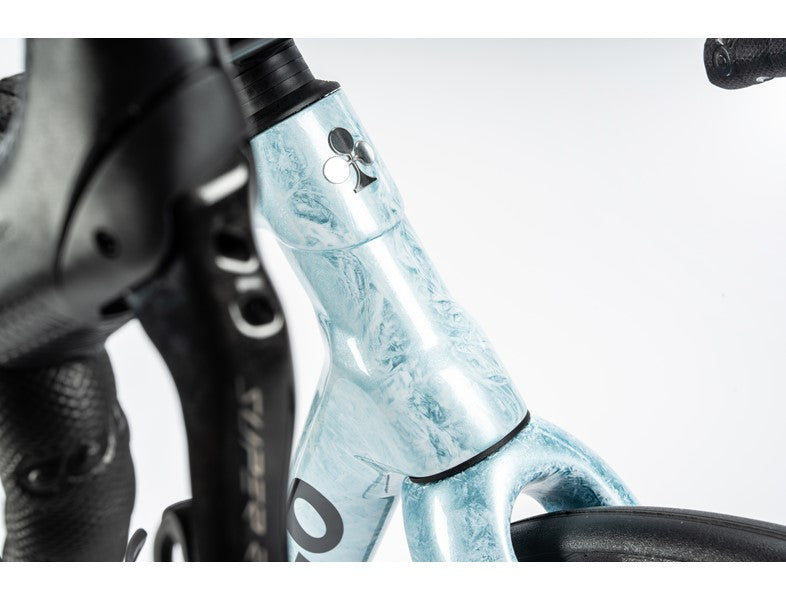

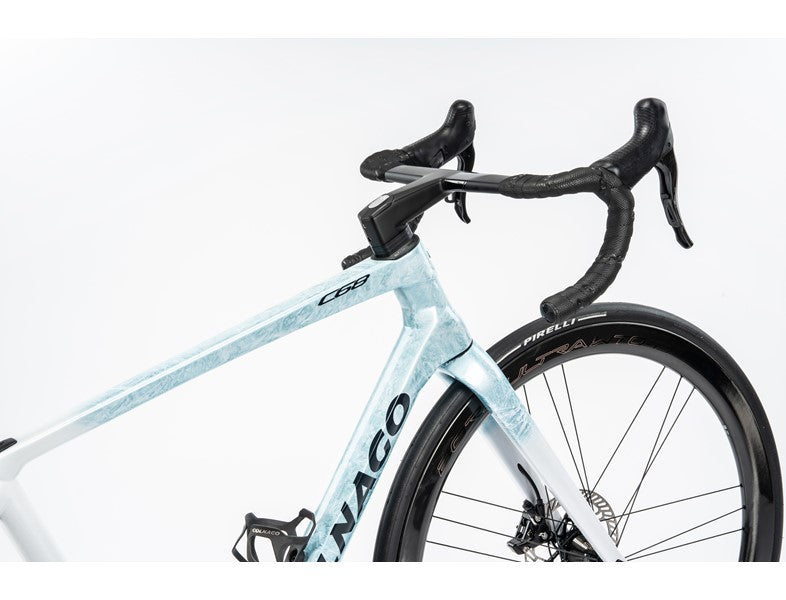

Rigidity and steering precision with the new steerer tubeThe larger diameter compared to the C64 allows greater rigidity and a better feeling of safety when riding on more technical trails.c68 head |
![]() |

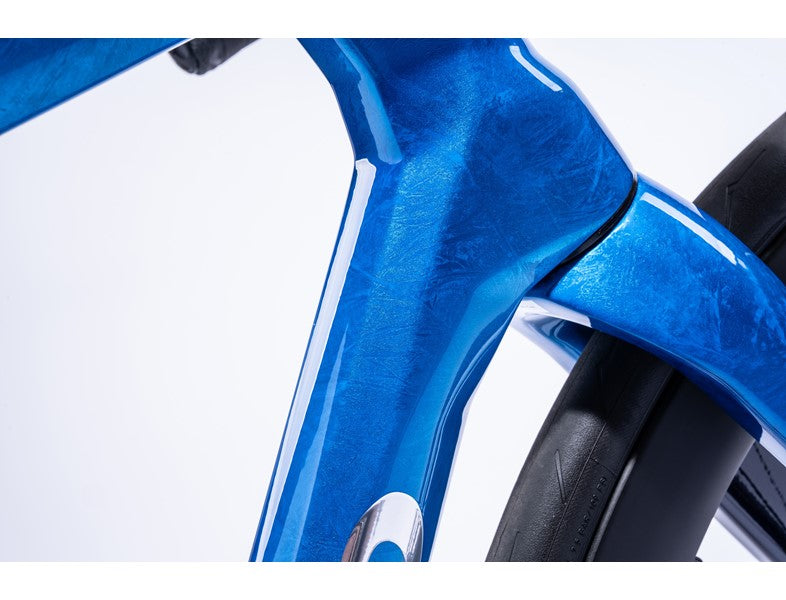

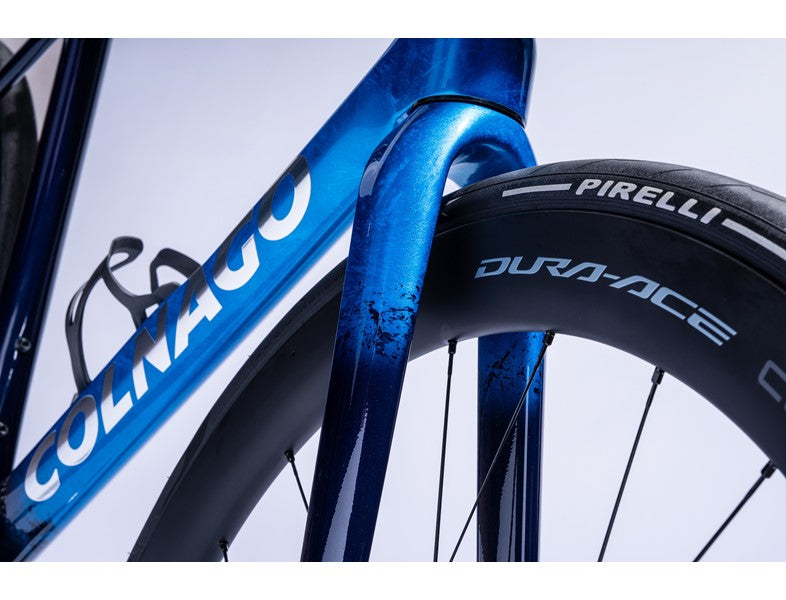

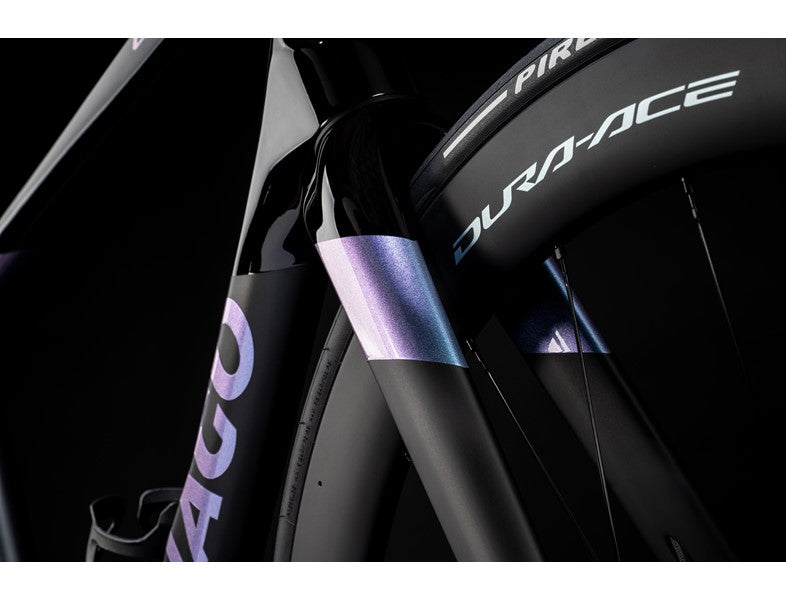

Lightened and updated forkThe fork has been optimised to be lighter while retaining the same degree of rigidity and precision. |
![]() |

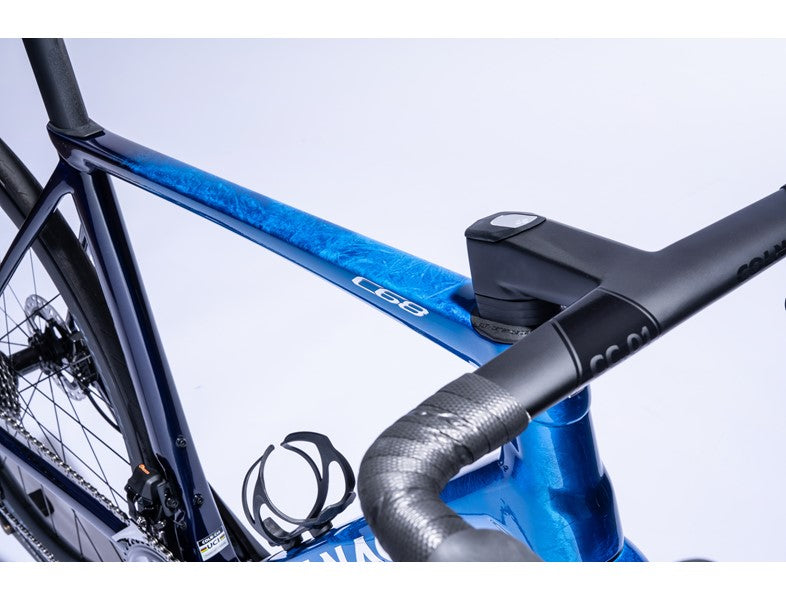

Integrated multitoolSooner or later, everyone needs a multitool to deal with any small adjustments that may be necessary during a ride (such as a flat tyre). We have integrated this tool into the top cap of the headset. |
![]() |

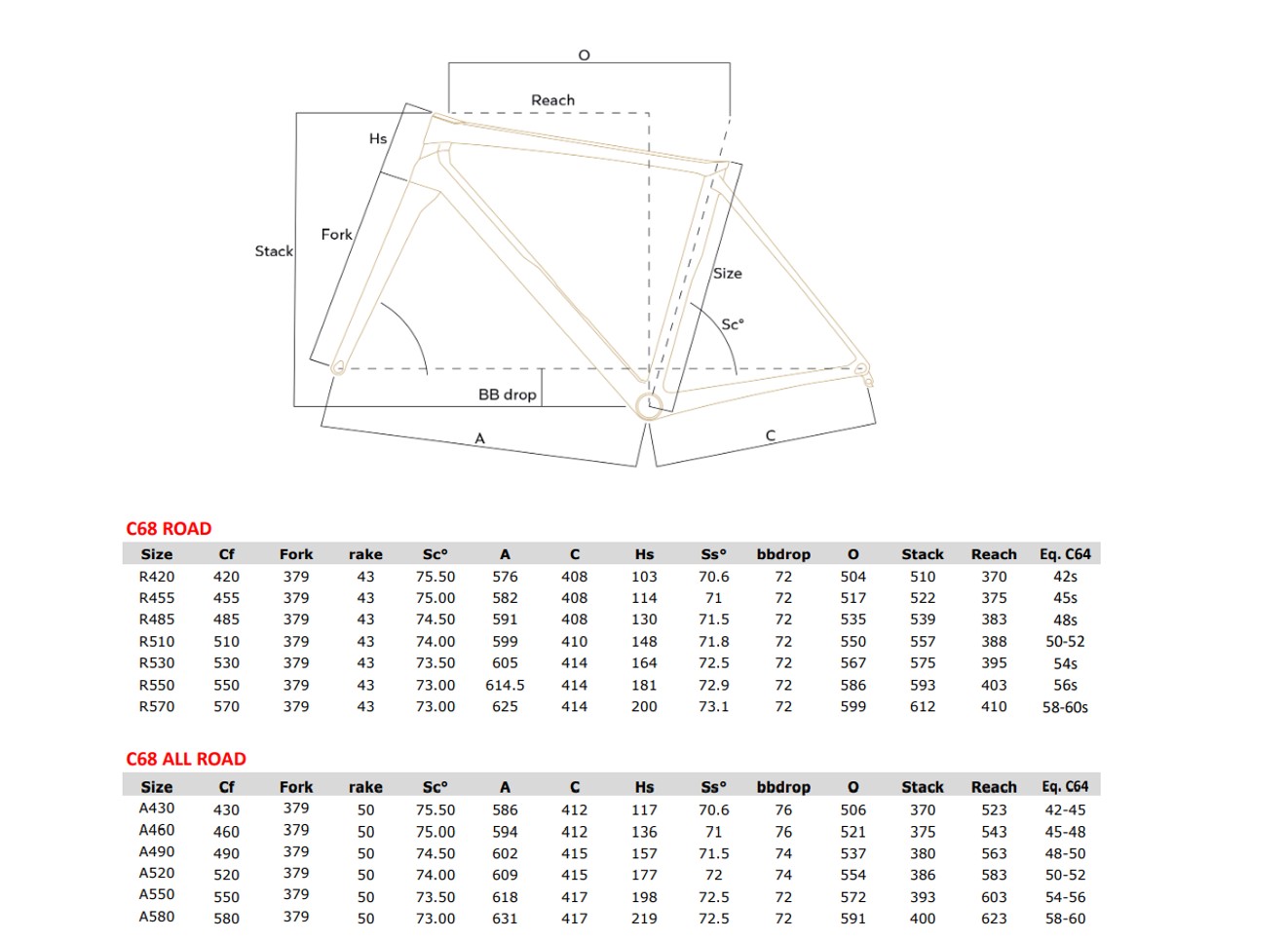

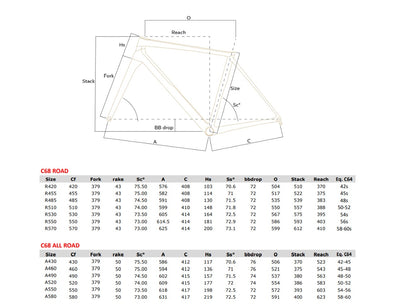

Aggressive geometriesThe geometry of the C68 Road also makes it a suitable bike for those seeking speed and more aerodynamic positions. Reach, stack, head angle and other parameters are comparable to those of the V4Rs, our dedicated race bike. |
![]() |

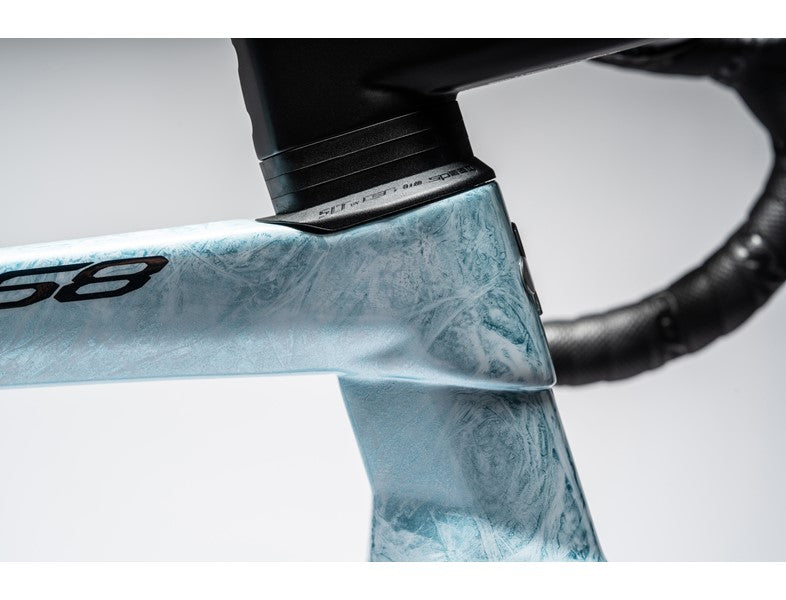

Ceramic Speed SLT headsetThe headset bearings are treated with Ceramic Speed's SLT technology, which virtually cuts out the need for any maintenance during the life of the product |
![]() |
An art jealously guarded and handed down
The tradition of modular carbon frames began at Colnago in the early 1990s. Colnago was the first brand in cycling history to introduce carbon frames to professional teams, winning a technically demanding race like the Paris Roubaix with the legendary C40.
